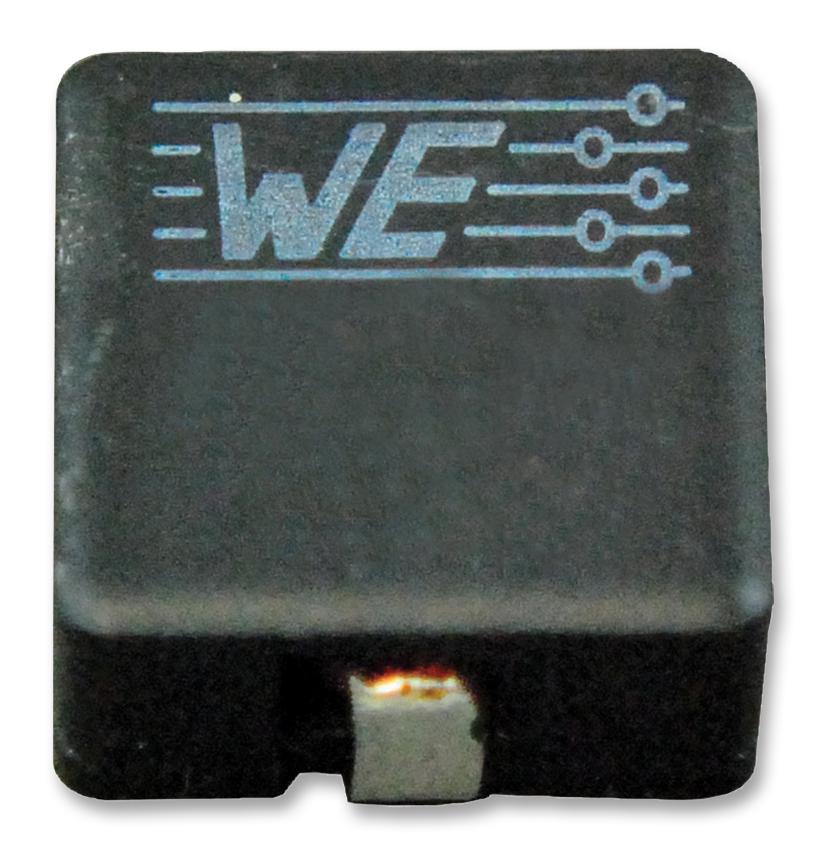

WURTH ELEKTRONIK 74435580330 SMD Flat Wire Inductor
The WURTH ELEKTRONIK WE-HCI 74435580330 is a surface-mount device (SMD) inductor specifically engineered for high-current applications. Its flat wire construction minimizes size and resistance, enabling efficient power transfer in compact designs. This inductor is ideal for use in DC-DC converters, power supplies, and other circuits requiring high current handling capabilities. It is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death.
WURTH ELEKTRONIK 74435580330 SMD Flat Wire Inductor Specifications:
- Inductance: 3.3 µH
- Rated Inductance: 4.82 µH
- Rated Current: 29.0 A
- Saturation Current: 45.0 A
- DC Resistance: 1.70 mΩ
- Self Resonant Frequency: 26.5 MHz
- Test Conditions: 100 kHz / 10 mA
- Temperature Rise: ∆T = 50 K
- L/L: < 30%
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -20°C to +40°C
- Ambient Temperature: -40°C to +85°C
- Humidity: 75% RH max.
