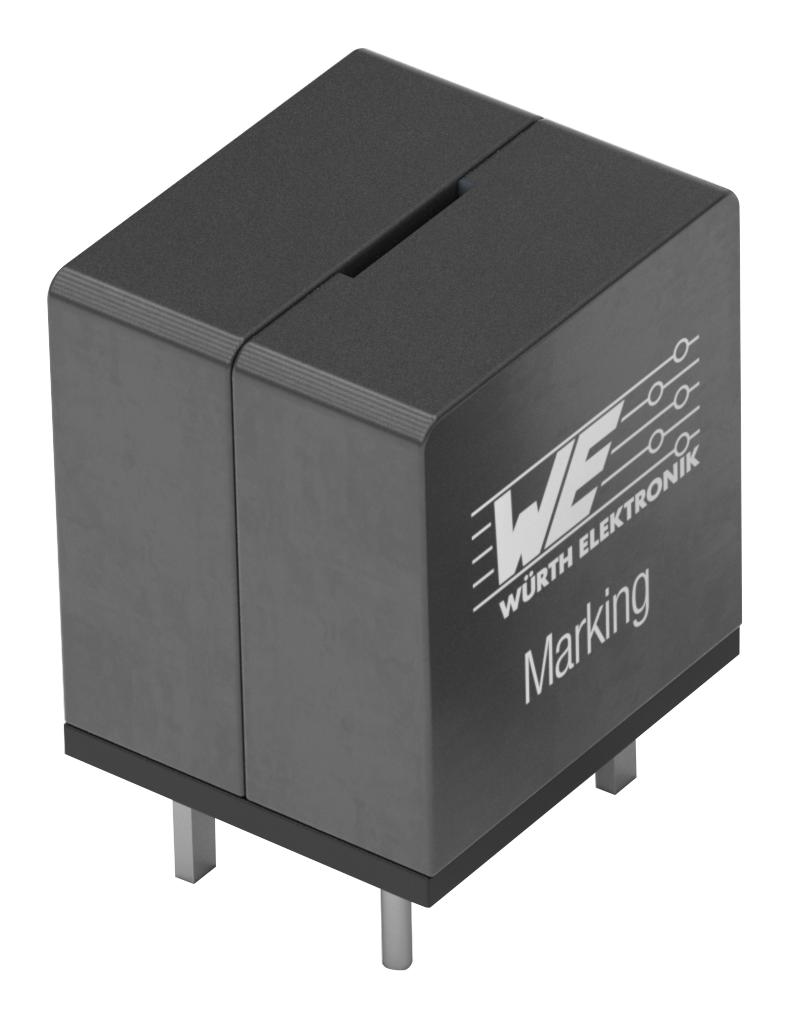

WURTH ELEKTRONIK 7444011480082 High Current Inductor
The WE-HIDA High Current Inductor is designed for power electronic applications requiring high inductance and current handling. It features a robust construction with an inductance of approximately 8.2 µH at 100 KHz and a rated current of 8.5 A, making it suitable for power supplies, converters, and filtering technologies. The component complies with RoHS, REACH, and halogen-free standards, ensuring environmental safety. Operating within -40°C to +125°C, it offers reliable performance in demanding industrial environments. Its assembly involves wave soldering profiles optimized for lead-free and Sn-Pb processes, ensuring durability and stable electrical characteristics in high-power applications.
WURTH ELEKTRONIK 7444011480082 High Current Inductor Specifications:
- Inductance: 8.2 µH at 100 KHz
- Rated Current: 8.5 A max.
- Saturation Current: 16 A
- DC Resistance: 9 mo @ 20°C (+10%)
- Self Resonant Frequency: 19 MHz typical
- Operating Temperature: -40°C to +125°C
- Ambient Temperature: -40°C to +85°C
- Material: Ferrite core
- RoHS, REACH, Halogen Free compliant
- Wave soldering profile: Preheat min 100°C, typical 120°C, max 130°C; Peak temperature 250-260°C; Max time at peak 10s.
- Storage Conditions: <40°C; <75% RH, in original packaging for up to 12 months.
- Certification: RoHS, REACH, Halogen Free, JEDEC JS709B
Buy the Buy WURTH ELEKTRONIK High Current Inductor Part Number 7444011480082 Online
Purchase the WURTH ELEKTRONIK High Current Inductor 7444011480082 online today and benefit from high inductance, robust construction, and environmental compliance. Perfect for power supplies, filters, and industrial electronics requiring high current handling and reliable performance. This inductor’s optimized wave soldering profile guarantees durability and stable operation in demanding applications. With RoHS, REACH, and halogen-free standards, it ensures safety and environmental friendliness. Secure your inventory with a proven, high-quality component to enhance your electronic designs and manufacturing efficiency.
Order your WURTH ELEKTRONIK High Current Inductor 7444011480082 today and ensure stable, high power performance for your electronic projects.
