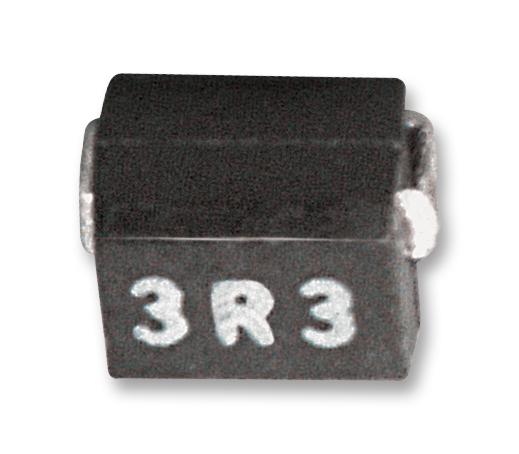

WURTH ELEKTRONIK 74476601 Wire Wound Inductor
This WURTH ELEKTRONIK SMD Wire Wound Inductor is designed for electronic circuit applications requiring high reliability and inductance accuracy. Manufactured with high-quality materials, it features an inductance of 7.96 uH with a tolerance of +10%, rated current of 450 mA, and a maximum DC resistance of 0.5 Ω at 20°C. It operates safely up to 105°C ambient temperature, with a self-resonant frequency around 100 MHz. Suitable for compact, surface-mount designs, this inductor ensures stable performance in demanding electronic environments.
WURTH ELEKTRONIK 74476601 Wire Wound Inductor Specifications:
- Inductance: 7.96 MHz L 1.0 uH +10%
- Rated current: 450 mA max.
- DC Resistance: 0.5 Ω max. @ 20°C
- Self resonant frequency: 100 MHz typ.
- Q-factor: 50 min. at 7.96 MHz
- Operating temperature: -40°C to +105°C
- Storage temperature: -20°C to +40°C; 75% RH max.
- Material: High-quality ferrite core and copper wire
- Shape: SMD, size: 1812
- Compliance: RoHS & REACH compliant
- Application: Suitable for high-frequency circuits and compact electronic modules
Buy the WURTH Series Inductive Components: SMD Wire Wound Inductor 74476601
Enhance your electronic projects with the high-quality WURTH ELEKTRONIK wire wound inductor, featuring 7.96 uH inductance, 450 mA rated current, and a compact 1812 size. Designed for surface-mount applications, it offers excellent performance in high-frequency circuits with a maximum operating temperature of 105°C. Its low DC resistance ensures minimal power loss, making it ideal for demanding electronic environments. Purchase online today and ensure your circuits operate reliably, efficiently, and with optimal inductive performance.
Buy WURTH ELEKTRONIK inductor 74476601 now and experience unmatched reliability and high-frequency stability in your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74476601?
You can click on the BUY or RFQ button to purchase 74476601 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74476601?
You can download the 74476601 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74476601?
WURTH ELEKTRONIK
