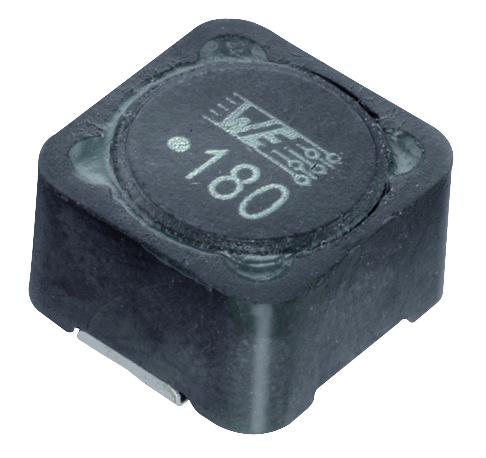

WURTH ELEKTRONIK 7447709222 SMT Shielded Power Inductor
The Würth Elektronik 7447709222 is a surface-mount technology (SMT) shielded power inductor designed for a wide range of electronic applications. With an inductance of 2200µH and a rated current of 0.53A, this inductor provides efficient power management and minimizes electromagnetic interference. It is suitable for use in general electronic equipment and is compliant with RoHS standards, demonstrating a commitment to environmental responsibility. The component's robust design and reliable performance make it a valuable asset in various industrial and consumer applications.
WURTH ELEKTRONIK 7447709222 SMT Shielded Power Inductor Specifications:
- Inductance L: 2200 µH ±20%
- Rated Current IR: 0.53 A max.
- Saturation Current ISAT: 0.75 A typ.
- DC Resistance RDC @ 20 °C: 3750 mΩ max.
- Self Resonant Frequency fres: 0.66 MHz typ.
- Operating Voltage V: 120 V max.
- Ambient Temperature: -40 up to +85 °C
- Operating Temperature: -40 up to +125 °C
- Moisture Sensitivity Level (MSL): 1
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform [ (EC)1907/2006 ]
- Halogen Free: Conform [ JEDEC 709B ]
- Packaging Type: Tape and Reel
- Tape width: 24 mm
- Pull-of force: 0.1 N - 1.3 N
- Tape Angle: 165° - 180°
Buy the 7447709222 WURTH ELEKTRONIK SMT Shielded Power Inductor | myMectronic
Purchase the Würth Elektronik 7447709222 SMT Shielded Power Inductor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447709222?
You can click on the BUY or RFQ button to purchase 7447709222 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447709222?
You can download the 7447709222 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447709222?
WURTH ELEKTRONIK
