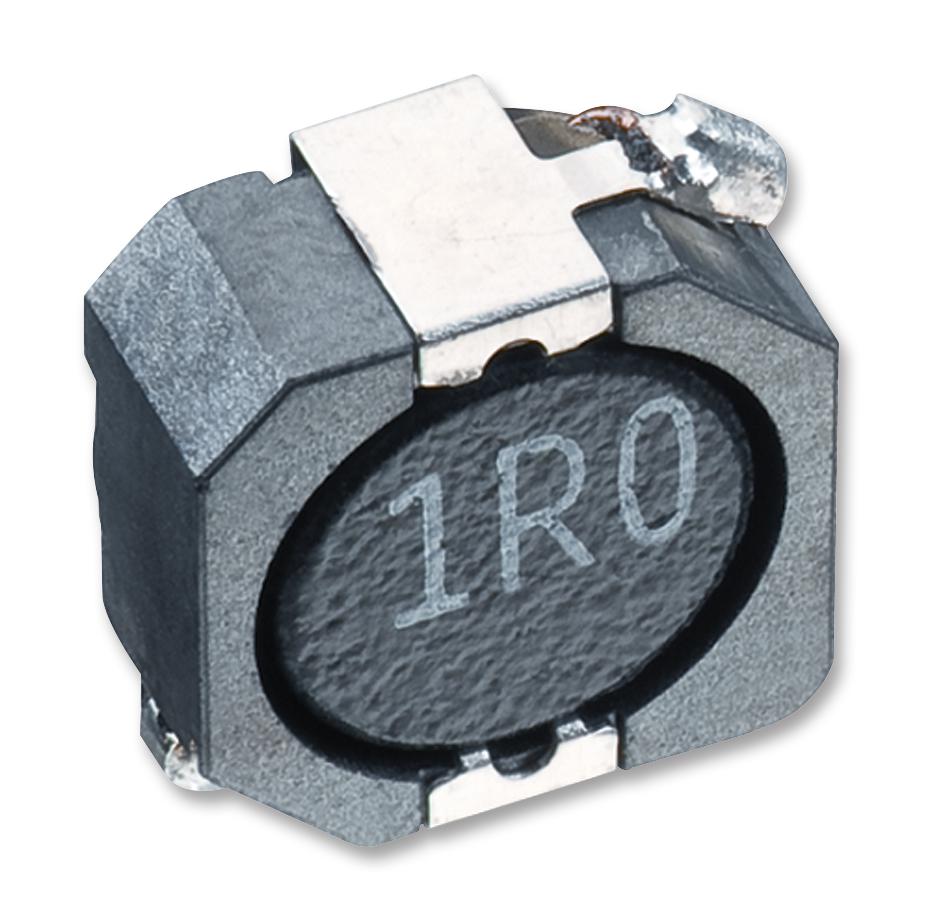

WURTH ELEKTRONIK 7447714681 Power Inductor
The Würth Elektronik WE-PD 1050 power inductor is a surface-mount device designed for a wide range of industrial applications, including DC-DC converters, power supplies, and filtering circuits. Its compact size and high saturation current capability make it ideal for space-constrained designs requiring efficient power management. The inductor is constructed with ferrite core and copper wire, ensuring low DC resistance and high inductance stability. It is RoHS compliant and suitable for demanding environments requiring reliable performance.
WURTH ELEKTRONIK 7447714681 Power Inductor Specifications:
- Inductance: 680 µH
- DC Resistance (typical): 1220 mW
- DC Resistance (max): 1400 mW
- Rated Current: 0.51 A
- Saturation Current: 0.71 A
- Self-Resonant Frequency: 2.05 MHz
- Mechanical Dimensions A: 10.0 mm
- Mechanical Dimensions B: 10.0 mm
- Mechanical Dimensions C: 5.0 mm max
- Mechanical Dimensions D: 3.0 mm
- Mechanical Dimensions E: 7.7 mm
- Operating Temperature: -40°C to +125°C
- Ambient Temperature: -40°C to +85°C
- Tape Specification A: 10.4 mm
- Tape Specification B: 10.7 mm
- Tape Specification C: 1.5 mm
- Tape Specification D: 4.0 mm
- Tape Specification E: 2.0 mm
- Tape Specification F: 16.0 mm
- Tape Specification G: 1.75 mm
- Tape Specification H: 11.5 mm
- Tape Specification I: 24.0 mm
- Tape Specification J: 0.4 mm
- Tape Specification K: 5.1 mm
- Reel Dimension a: 330.0 mm
- Reel Dimension b: 21.00 mm
- Reel Dimension c: 13.00 mm
- Reel Dimension d: 100.0 mm
Buy the 7447714681 WURTH ELEKTRONIK Power Inductor | myMectronic
Purchase the WURTH ELEKTRONIK 7447714681 power inductor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447714681?
You can click on the BUY or RFQ button to purchase 7447714681 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447714681?
You can download the 7447714681 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447714681?
WURTH ELEKTRONIK
