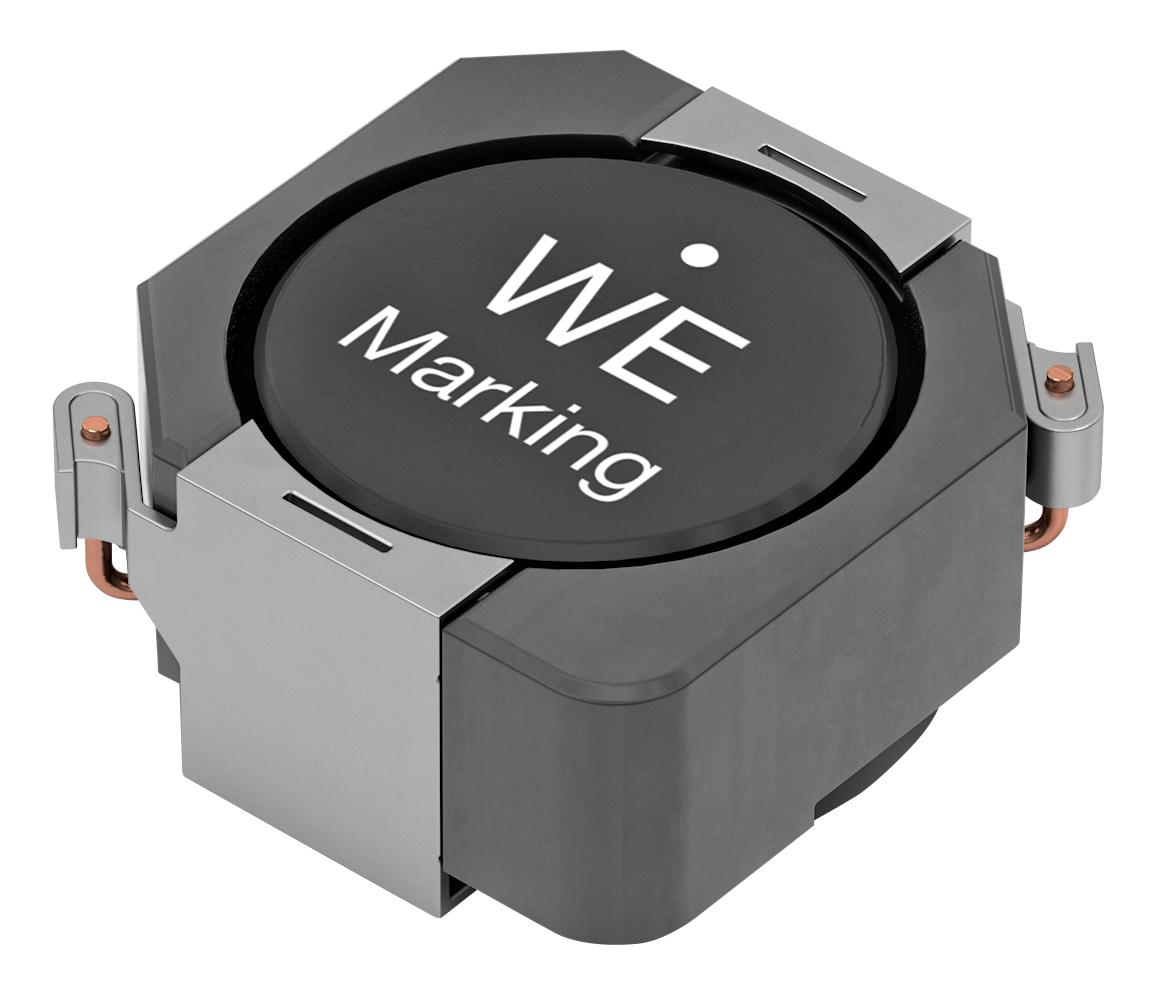

WURTH ELEKTRONIK 7447773101 Power Inductor
The WURTH ELEKTRONIK WE-PD Shielded Power Inductor is a high-performance, RoHS-compliant power inductor designed for electronic equipment. It features a rated current of 0.97 A, inductance of 100 μH ±20%, and operates up to +150°C. The component boasts low DC resistance, high self-resonant frequency of 67 MHz, and is suitable for applications requiring compact, efficient power management. Certified for safety standards, it is ideal for use in electronic circuits demanding reliability and high magnetic performance.
WURTH ELEKTRONIK 7447773101 Power Inductor Specifications:
- Inductance: 100 μH ±20%
- Rated Current: 0.97 A
- Saturation Current: 1.2 A
- DC Resistance: 270 mΩ at 20°C (typ), 335 mΩ max at 20°C
- Self Resonant Frequency: 67 MHz
- Operating Voltage: 120 V
- Ambient Temperature Range: -40°C to +110°C
- Storage Conditions: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- RoHS Compliance, REACH conformant, Halogen Free
- Package: SMT
- Recommended land pattern: [mm] unspecified in provided data
- Certification: RoHS, REACH, JEDEC 709B
- Test conditions: +20°C, 33% RH unless specified otherwise
Buy the Buy WURTH ELEKTRONIK Power Inductor Part Number 7447773101 Online
Enhance your electronic assemblies with the WURTH ELEKTRONIK Power Inductor, Part Number 7447773101. This high-quality component offers a 100 μH inductance, low DC resistance, and a rated current of 0.97 A, operating reliably up to +150°C. Ideal for compact power supply circuits, it is RoHS and REACH compliant, ensuring safety and environmental standards. Purchase online today and enjoy fast delivery, competitive pricing, and the confidence of reliable, high-performance electronic components that elevate your project’s efficiency and durability.
Order your WURTH ELEKTRONIK Series7447773101 high-performance shielded power inductor today and ensure reliable, efficient power management for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447773101?
You can click on the BUY or RFQ button to purchase 7447773101 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447773101?
You can download the 7447773101 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447773101?
WURTH ELEKTRONIK
