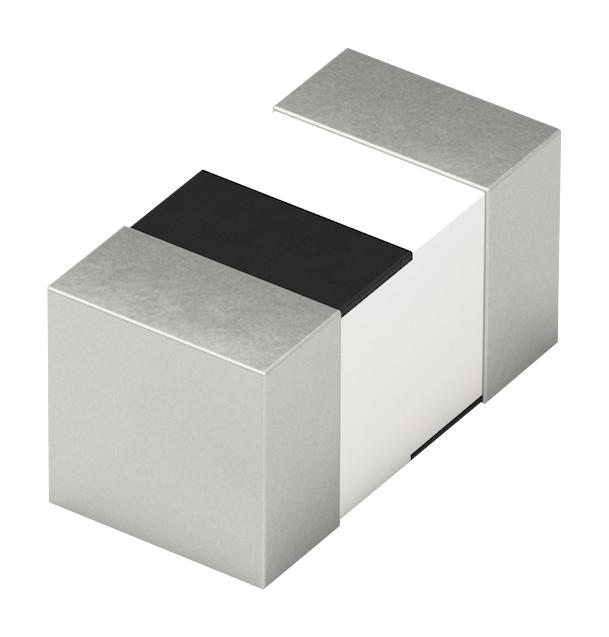

WURTH ELEKTRONIK 7447860122 Multilayer Ceramic Inductor
The Würth Elektronik WE-MK 7447860122 is a multilayer ceramic inductor designed for surface mount technology (SMT). It features a compact form factor and excellent electrical characteristics, including low DC resistance and high self-resonant frequency. This inductor is ideal for use in a wide range of applications, such as filtering, impedance matching, and RF circuits. It is RoHS compliant and suitable for general electronic equipment, but not intended for critical safety applications without proper evaluation. Operating within a temperature range of -55°C to +125°C, this component ensures reliable performance in diverse environments. The packaging is compliant with IEC 60286-3:2019.
WURTH ELEKTRONIK 7447860122 Multilayer Ceramic Inductor Specifications:
- Inductance L: 22 nH ±5%
- Q-Factor Q: 12
- DC Resistance RDC @ 20 °C: 0.4 Ω max.
- Rated Current IR ΔT = 20 K: 300 mA max.
- Self Resonant Frequency fres: 1600 MHz min.
- Ambient Temperature: -40 up to +85 °C
- Operating Temperature: -55 up to +125 °C
- Storage Conditions: in original packaging < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Packaging Type: Tape and Reel
- Tape Type: A
- A0(mm): 1.03
- B0(mm): 1.85
- W(mm): 8.00
- T(mm): 0.95
- T1(mm): 0.10
- P0(mm): 4.00
- P1(mm): 4.00
- P2(mm): 2.00
- D0(mm): 1.50
- E1(mm): 1.75
- E2(mm): 6.25
- F(mm): 3.50
- Material: Paper
- Quantity (pcs.): 4000
