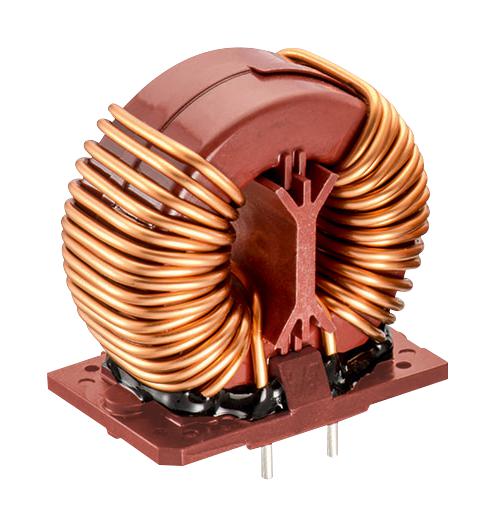

WURTH ELEKTRONIK 744831010205 Line Choke
This line choke is a high-performance power line filter designed for reliable suppression of electromagnetic interference in electronic equipment. It features a rated voltage of 760 V AC, inductance of 2x1 mH, and a maximum DC resistance of 55 mΩ. Suitable for applications requiring high temperature resistance up to 125°C, it ensures stable operation in demanding environments. The choke is built with heavy-duty ferrite cores and is recommended for PCB mounting using self-tapping screws. Ideal for complex electrical systems needing effective electromagnetic compatibility (EMC) solutions.
WURTH ELEKTRONIK 744831010205 Line Choke Specifications:
- Rated Voltage: 760 V AC
- Inductance: 2x1 mH
- DC Resistance: 55 mΩ max.
- Rated Current: 20.5 A @70°C
- Insulation Test Voltage: 3000 Vac
- Temperature Range: -20°C to +125°C
- Temperature Rise: < 55K
- Storage Temperature: -20°C to +60°C
- Maximum Operating Temperature: +125°C
- Core Material: Ferrite
- Mounting: PCB with 2 self-tapping screws
- Wave Soldering Profile: Max. 260°C peak temp, 70 sec preheat, 4 min soak
Buy the Buy WURTH ELEKTRONIK Line Choke Part Number 744831010205 Online
Order the WURTH ELEKTRONIK line choke 744831010205 easily online and ensure your electronic project benefits from superior electromagnetic interference suppression. This power line choke offers high current capacity, excellent thermal stability up to 125°C, and durable ferrite cores for consistent performance. Perfect for projects demanding reliable filtering and noise reduction, it is simple to mount on PCB with included screws, and complies with industry standards. Buy now to improve your device's EMC performance and achieve optimal operational stability.
Buy WURTH ELEKTRONIK line choke 744831010205 now and enhance your electronic system's EMI filtering with reliable high-current performance and robust construction.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744831010205?
You can click on the BUY or RFQ button to purchase 744831010205 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744831010205?
You can download the 744831010205 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744831010205?
WURTH ELEKTRONIK
