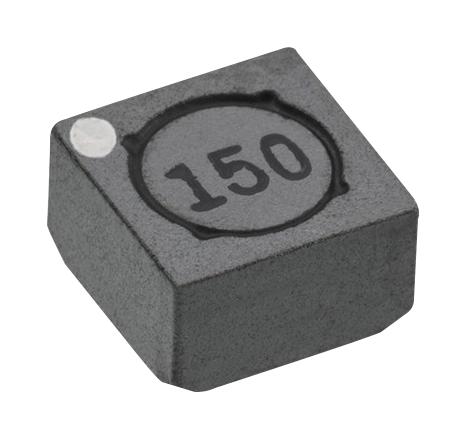

WURTH ELEKTRONIK 7448841220 Powerchoke
Wirth Elektronik’s WE-DPC HV SMD Dual Powerchoke is a high-performance, surface-mount device designed for electrical power filtering and inductance applications in electronics. It features a rated voltage of 250 V (RMS), high inductance values up to 22 μH with ±20% tolerance at 100 kHz, and a maximum DC resistance of 650 mΩ. Constructed for reliable operation at temperatures up to +125°C, it offers a compact footprint suitable for SMT assembly, ensuring efficient power management in industrial and electronic systems. Its robust insulation and proven electrical properties make it ideal for demanding industrial applications.
WURTH ELEKTRONIK 7448841220 Powerchoke Specifications:
- Rated Voltage: 250 V (RMS)
- Inductance: 22 μH ±20% at 100 kHz
- DC Resistance: 650 mΩ (max.)
- Saturation Current: 1 A
- Self Resonant Frequency: 21 MHz (typ.)
- Operating Temperature: -40°C to +125°C
- Material: High-quality ferrite core
- Mounting Type: SMD surface-mount
- Insulation Test Voltage: 1500 Vac (max.)
- Test Conditions: 20°C, 33% RH
- Dimensions and physical specs available on datasheet
- Conforms to safety and reliability standards
Buy the Wirth Elektronik WE-DPC HV SMD Dual – Reliable Power Choke for Industrial Applications
Purchase the Wirth Elektronik WE-DPC HV SMD Dual Powerchoke online now to secure an advanced, reliable power filtering solution for your industrial and electronic projects. This high-efficiency device features a 22 μH inductance, rated at 250 V (RMS), with low DC resistance of 650 mΩ, suitable for high-temperature environments up to 125°C. Its compact SMT design ensures easy integration into limited spaces on your PCB. Trust this proven component to deliver consistent electrical performance, improve power regulation, and ensure your system’s stability and durability. Order today for quick, hassle-free delivery and elevate your electronic assemblies with trusted Wirth quality.
Order your Wirth Elektronik WE-DPC HV SMD Dual power choke today and enhance your electronics with dependable, high-quality inductive components.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7448841220?
You can click on the BUY or RFQ button to purchase 7448841220 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7448841220?
You can download the 7448841220 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7448841220?
WURTH ELEKTRONIK
