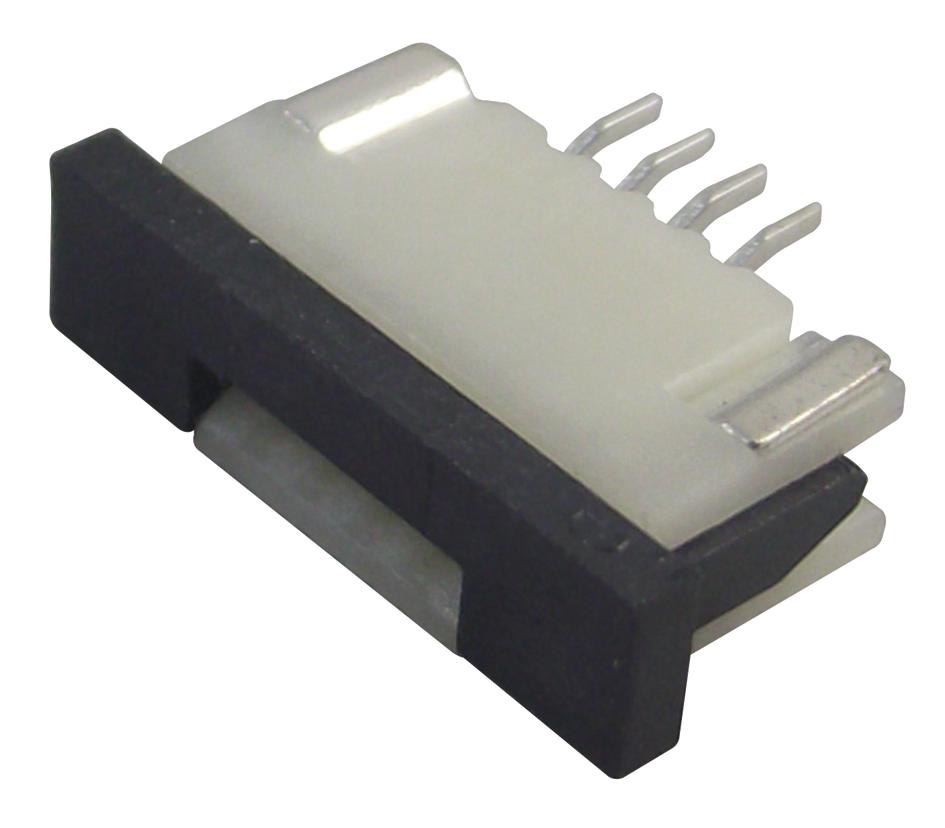

WURTH ELEKTRONIK 68610414122 FPC Connector ZIF Horizontal
The Würth Elektronik 68610414122 is a ZIF (Zero Insertion Force) horizontal FPC (Flexible Printed Circuit) connector designed for secure and easy connection of flexible circuits. It is intended for use in general electronic equipment and is not suitable for applications requiring high safety or reliability standards without specific agreements. The connector features a phosphor bronze contact material with tin over nickel plating for excellent conductivity and corrosion resistance, and a PPS insulator for robust insulation and flame retardancy (UL94 V-0). It is RoHS compliant and designed for reliable performance within an operating temperature range of -25°C to +85°C. This connector is ideal for applications where frequent connection and disconnection of FPCs is required, minimizing stress on the flexible circuit.
WURTH ELEKTRONIK 68610414122 FPC Connector ZIF Horizontal Specifications:
- Dimensions_Pl: 0.15
- Dimensions_1: 0.05
- Dimensions_L2: 0.1
- Dimensions_L: 0.25
- Dimensions_L1: 0.25
- Recommended_Land_Pattern_3.5: 3.5
- Recommended_Land_Pattern_pl: 1
- Recommended_Land_Pattern_1.7: 1.7
- General_Tolerance: ±0.05
- Pitch_P: 1
- Durability: 25 Mating cycles
- Insulator_Material: PPS
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Beige
- Actuator_Material: PPS
- Actuator_Flammability_Rating: UL94 V-0
- Actuator_Color: Black
- Contact_Material: Phosphor Bronze
- Contact_Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact_Type: Stamped
- Operating_Temperature: -25 up to +85 °C
- Rated_Current_IR: 1 A
- Working_Voltage: 25 V (AC)
- Withstanding_Voltage: 500 V (AC) 1 min
- Contact_Resistance_R: 20 mΩ max.
- Insulation_Resistance_RISO: 100 MΩ min.
- UL_Approval: E323964
- Packaging: Tape and Reel
- Packaging_Unit: 1500
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Length_L: 11
- Length_L1: 9
- Length_L2: 5.15
- Pin_to_Pin_Middle: 3
