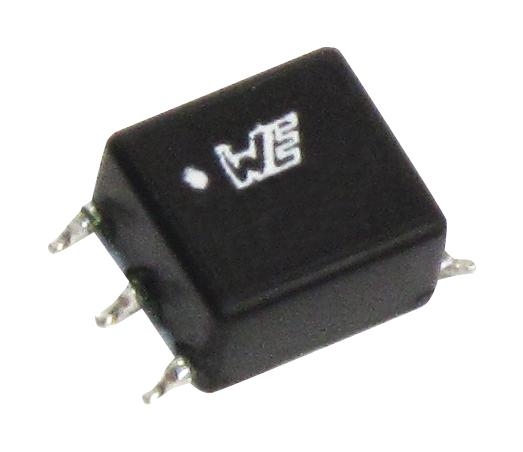

WURTH ELEKTRONIK 760390012 Industrial Transformer
This high-performance transformer is designed to meet international safety and quality standards including IEC60950-1, UL60950-1, and AS/NZS60950.1. It features a 150mA current rating, operates within -40°C to +125°C, and is suitable for primary circuits with a working voltage of 400Vrms. The transformer has a low D.C. resistance (0.31 to 0.33 ohms), a minimal inductance of 475uH at 10kHz, and a turns ratio (6-4):(1-3) of 52%. Its robust design ensures reliability for industrial and electronic applications, with compliance to RoHS and AEC-Q200 standards for stringent quality management.
WURTH ELEKTRONIK 760390012 Industrial Transformer Specifications:
- Operating Temperature Range: -40°C to +125°C
- Current Rating: 150mA
- Voltage-Time: 11Vμs
- D.C. Resistance: 0.31 ohms (1-3), 0.33 ohms (6-4) at 20°C
- Inductance: 475uH minimum at 10kHz
- Dielectric Strength: 3125VAC for 1 second, 2500VAC for 1 minute
- Turns Ratio (6-4):(1-3): 52%
- UL Code: E205930, cUL, IEC60950-1, RoHS compliant
- Dimensions and physical details: Refer to detailed drawing with millimeter specifications
- Designed for primary circuits with functional insulation at 400Vrms, qualified to AEC-Q200
Buy the Reliable transformer for Industrial Applications
Order this high-quality industrial transformer online now to ensure reliable power conversion for your electronic equipment. With a current rating of 150mA and a wide operating temperature range from -40°C to +125°C, it efficiently supports primary circuits at 400Vrms. Crafted to meet IEC, UL, RoHS, and AEC-Q200 standards, this transformer guarantees safety, durability, and excellent performance. Perfect for industrial applications and electronic projects requiring robust insulation and precise specifications. Purchase now for prompt delivery and quality assurance.
Get UL and IEC certified transformer today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 760390012?
You can click on the BUY or RFQ button to purchase 760390012 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 760390012?
You can download the 760390012 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 760390012?
WURTH ELEKTRONIK
