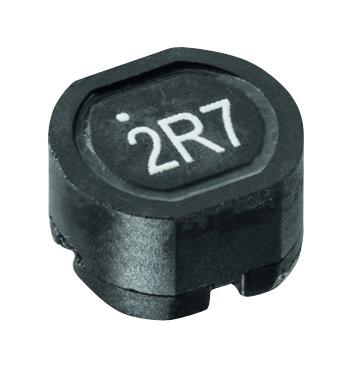

WURTH ELEKTRONIK 784787181 SMT Power Inductor
The WURTH ELEKTRONIK WE-PD2SA SMT Power Inductor is a high-performance magnetic component designed for power supply applications in compact electronic equipment. It offers a rated current of 0.68 A, with a saturation current of 0.62 A. Operating within a temperature range of -50°C to +150°C, it features RoHS and REACH compliance, halogen-free construction, and low DC resistance of approximately 673 mΩ. Suitable for reflow soldering, this inductor ensures reliable performance in demanding digital and analog circuits, making it ideal for modern power management solutions.
WURTH ELEKTRONIK 784787181 SMT Power Inductor Specifications:
- Inductance: 180 μH at 100 kHz/250 mV
- Rated Current: 0.68 A
- Saturation Current: 0.62 A
- DC Resistance: 673 mΩ (typ), 794 mΩ (max) @ 20°C
- Self Resonant Frequency: 3.8 MHz
- Operating Temperature Range: -50°C to +150°C
- Ambient Temperature: -50°C to +110°C
- Storage Conditions: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- RoHS and REACH compliant
- Halogen Free: Yes
- Recommended Land Pattern: 7.8+03 mm
- Package Type: SMT for reflow soldering
- Compliance Standards: IEC 61249-2-21, JEDEC JS709B
Buy the WURTH Series WE-PD2SA SMT Power Inductor: 784787181
Purchase the WURTH SERIES WE-PD2SA SMT Power Inductor online now to enhance your electronic projects. With a rated current of 0.68 A and operating temperature up to 150°C, it provides reliable power regulation. Its low DC resistance and high self-resonant frequency make it suitable for demanding applications like high-frequency circuits and compact power supplies. RoHS, REACH, and halogen-free certification guarantee environmental safety and compliance, ensuring optimal performance and durability for professional electronic designs.
Order your WURTH Series WE-PD2SA SMT Power Inductor today and ensure reliable power management in your high-performance electronic designs.
