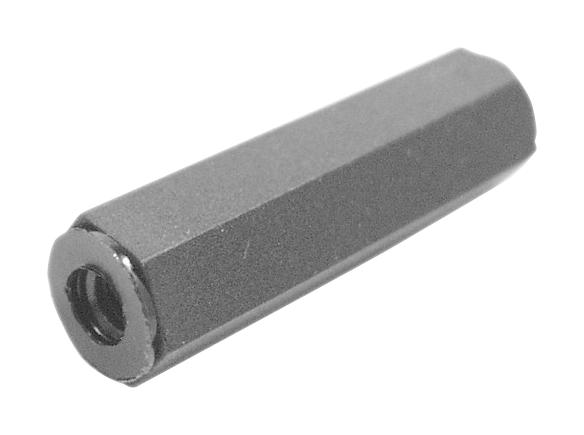

WURTH ELEKTRONIK 970500365 Plastic Spacer Stud
The WURTH ELEKTRONIK WA-SPAII Plastic Spacer Stud is a versatile component used in general electronic equipment applications. Constructed from polyamide, it offers durability and electrical insulation. Its black color and UL94 HB flammability rating ensure safety and performance. This spacer stud is RoHS compliant and conforms to halogen-free standards, making it suitable for environmentally conscious designs. Proper storage and handling are essential to maintain its integrity and ensure reliable operation within specified temperature and humidity ranges.
WURTH ELEKTRONIK 970500365 Plastic Spacer Stud Specifications:
- Dimensions: mm
- A: N/A
- SW: 6
- Lu0,1: N/A
- Tli: 10
- Ti: M3
- Material: Polyamide
- Color: Black
- Flammability Rating: UL94 HB
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21] & [JEDEC JS709B]
- Operating Temperature: -30 up to +110 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Packaging: Bag
- Length: 50
- Inner Thread Length: 10
- General Tolerance: DIN ISO 2768-1m
Buy the 970500365 WURTH ELEKTRONIK Plastic Spacer Stud | myMectronic
Purchase the WURTH ELEKTRONIK 970500365 Plastic Spacer Stud securely and confidently for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 970500365?
You can click on the BUY or RFQ button to purchase 970500365 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 970500365?
You can download the 970500365 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 970500365?
WURTH ELEKTRONIK
