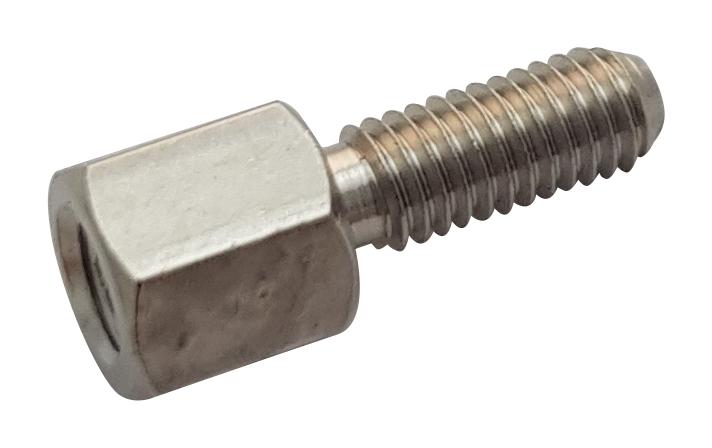

WURTH ELEKTRONIK 971050354 Brass Spacer Stud
The Würth Elektronik 971050354 is a brass spacer stud designed to provide secure and reliable spacing and support in electronic assemblies. Constructed from brass with a nickel surface finish, this component offers excellent corrosion resistance and electrical conductivity. It is compliant with RoHS and REACH regulations, ensuring environmental responsibility. The spacer stud is suitable for a wide range of general electronic applications, offering a robust and dependable solution for maintaining component separation and structural integrity. Care should be taken to adhere to specified torque limits during installation to prevent damage to the component and the PCB. Proper storage and handling are essential to maintain product quality and performance.
WURTH ELEKTRONIK 971050354 Brass Spacer Stud Specifications:
- Dimensions_SW: Not specified
- Dimensions_A: Not specified
- Dimensions_L: 5 mm
- Dimensions_Tlo: 8 mm
- Dimensions_Ti: M3
- Dimensions_Tli: 3 mm
- Material: Brass
- Surface: Nickel (Ni)
- Certification: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -55 up to +150 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level: 1
- General_Tolerance: DIN ISO 2768-1m
- Description: WA-SBRIE Brass Spacer Stud
- Outer_Thread: M3
- Inner_Thread_Length: 3 mm
- Outer_Thread_Length: 8 mm
- Wrench: 5 mm
- Thread_Type: with Metric Thread, internal/external
- Status: Valid
- Order_Code: 971050354
