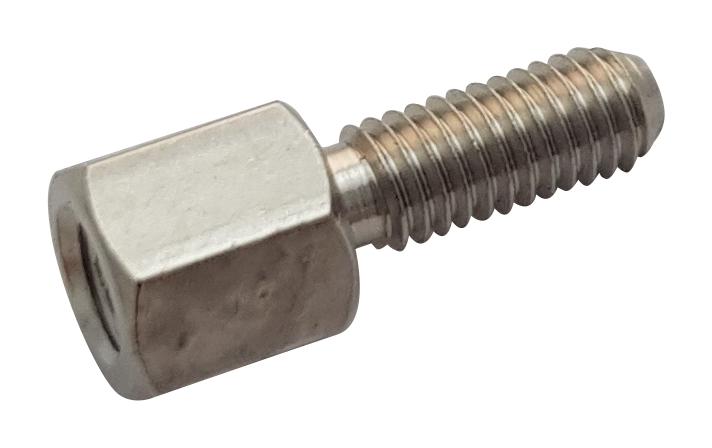

WURTH ELEKTRONIK 971080324 Brass Spacer Stud
The Würth Elektronik WA-SBRIE 971080324 is a brass spacer stud designed to provide secure and reliable mounting solutions in electronic assemblies. Constructed from brass with a nickel surface finish, this stud offers excellent corrosion resistance and electrical conductivity. It is compliant with RoHS and REACH regulations, ensuring environmental responsibility. This component is ideal for applications requiring a robust and dependable connection point, commonly used in terminal blocks and other electronic enclosures. Proper storage and handling are crucial to maintain product integrity, and Würth Elektronik provides detailed guidelines for storage conditions and usage to ensure optimal performance and longevity.
WURTH ELEKTRONIK 971080324 Brass Spacer Stud Specifications:
- Dimensions_SW: mm
- Dimensions_A: mm
- Material: Brass
- Surface: Nickel (Ni)
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21]
- Halogen Free_JEDEC: Conform [JEDEC JS709B]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level MSL: 1
- Length_L: 8 mm
- Inner Thread: M3
- Outer Thread: M3
- Inner Thread Length_Tli: 5 mm
- Outer Thread Length_Tlo: 6 mm
- Wrench_SW: 5.5 mm
- Description: WA-SBRIE Brass Spacer Stud
- General Tolerance: DIN ISO 2768-1m
- Order Code: 971080324
- Size/Type: with Metric Thread, internal/external
