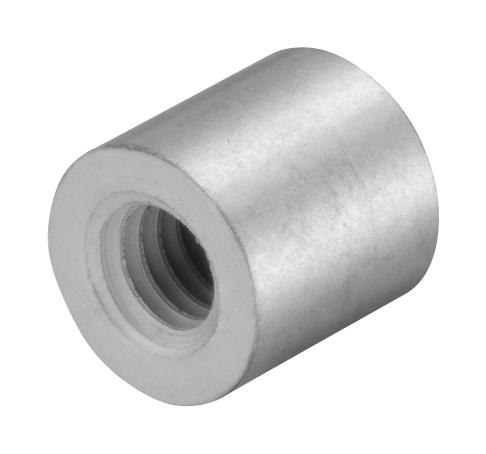

WURTH ELEKTRONIK 7466004R REDCUBE SMD with internal through-hole thread
The REDCUBE SMD with internal through-hole thread WP-SMBU is a high-quality electronic component designed for precise and reliable applications. Made from durable brass with a tin surface, it features a solder pad thickness of 150 um and operates within -55°C to +150°C. Suitable for industrial equipment, it supports up to 50 A rated current at 20T lp, depending on PCB, cable, and cross section. The component is packaged in tape and reel, with a maximum package thickness of 1.6 mm, ensuring easy handling and installation for complex electronic assemblies.
WURTH ELEKTRONIK 7466004R REDCUBE SMD with internal through-hole thread Specifications:
- Material: Brass
- Surface Finish: Tin
- Solder Pad Thickness: 150 um
- Operating Temperature: -55°C to +150°C
- Rated Current: 50 A at 20T lp
- Package Type: Tape and Reel
- Packaging Quantity: 500 units
- Maximum Package Thickness: 1.6 mm
- Tightening Torque: 1.2 Nm
- Suitable for PB-Free Assembly
- Preheat Temperature Min: 150°C
- Preheat Temperature Max: 200°C
- Reflow Temperature: 260°C for packages less than 1.6 mm, 250°C for 1.6-2.5 mm, and 245°C for thicker packages
- Reflow Profile: Preheat 150-200°C in 60-120 sec, peak temperature as per package, with ramp-up rate max 3°C/sec
- Max. Ramp Down Rate: 6°C/sec
- Minimum Feeder Length: 400 mm
- Minimum Tape Length: 100 mm
- Tape Width: 1380 mm
Buy the Brass Series REDCUBE SMD: 7466004R
Enhance your electronic assemblies with the Wirth Elektronik REDCUBE SMD featuring internal through-hole thread. Crafted from durable brass with a tin surface finish, it supports up to 50A current at 20T lp, suitable for demanding industrial applications. Packaged in tape and reel for easy automation, it ensures consistent quality and reliable performance. Its operating temperature range of -55°C to +150°C makes it ideal for diverse environments. Order online now to secure fast delivery of this essential component for your high-performance projects.
Order your Wirth Elektronik REDCUBE SMD with internal through-hole thread WP-SMBU today and ensure robust, reliable electrical connections for your industrial electronics.
