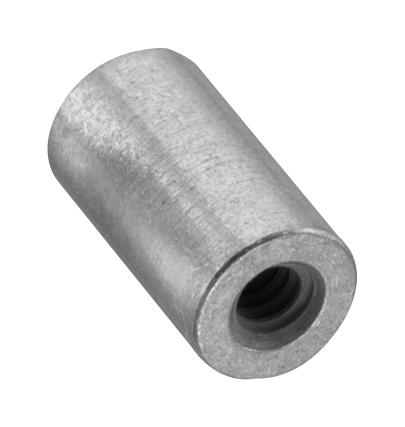

WURTH ELEKTRONIK 9774010633R SMT Steel Spacer
The WURTH ELEKTRONIK 9774010633R SMT steel spacer is a critical component in modern electronic assemblies, providing essential spacing and insulation between circuit board layers. Constructed from steel and finished with a tin surface, this spacer offers excellent conductivity and corrosion resistance. Its compact dimensions (L: 3.3mm, A: 1.6mm) make it ideal for densely populated PCBs. The spacer is RoHS compliant, conforming to environmental standards, and is packaged in tape and reel format for automated assembly processes. Typical applications include securing components, preventing short circuits, and ensuring proper thermal management in various electronic devices.
WURTH ELEKTRONIK 9774010633R SMT Steel Spacer Specifications:
- Dimensions_L: 3.3 mm
- Dimensions_O: 1.9 mm
- Dimensions_A: 1.6 mm
- Material: Steel
- Surface: Tin
- Solder_Paste_Thickness: 120 µm (min)
- Tightening_Torque: 0.1 N*m (max)
- Certification: RoHS Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free: Conform [IEC 61249-2-21] and [JEDEC JS709B]
- Operating_Temperature: -55 up to +150 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
Buy the 9774010633R WURTH ELEKTRONIK SMT Steel Spacer | myMectronic
Purchase the WURTH ELEKTRONIK 9774010633R SMT Steel Spacer securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 9774010633R?
You can click on the BUY or RFQ button to purchase 9774010633R from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 9774010633R?
You can download the 9774010633R datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 9774010633R?
WURTH ELEKTRONIK
