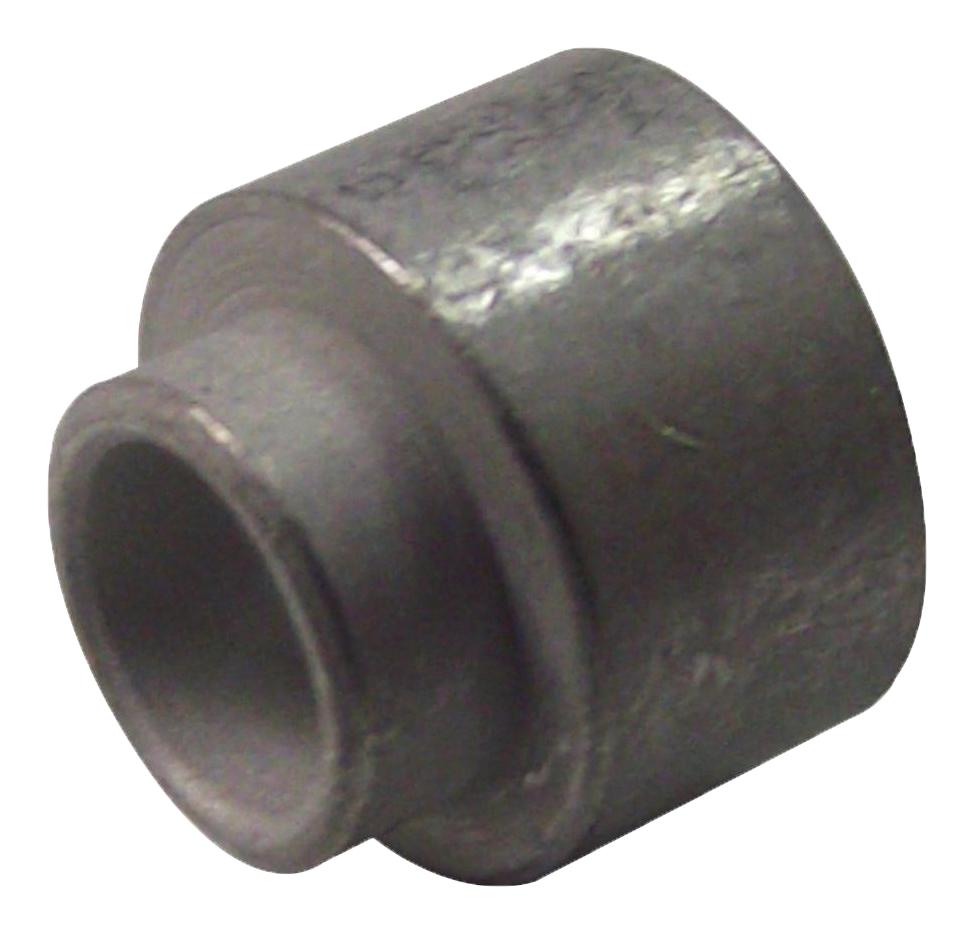

WURTH ELEKTRONIK 9774040151R Steel Spacer
The SMT Steel Spacer with internal thread by Wirth Elektronik is designed for electronic equipment assembly, providing accurate spacing and robust mechanical stability. It features a steel construction with tin surface finish, suitable for reflow soldering with a recommended solder paste thickness of 150 μm, ensuring secure mounting and reliable electrical connections. The spacer operates within -55°C to +150°C temperatures, conforms to RoHS, REACH, and halogen-free standards, and is supplied in tape and reel packaging for automated handling, making it ideal for high-volume surface-mount technology applications requiring durability and precision.
WURTH ELEKTRONIK 9774040151R Steel Spacer Specifications:
- Material: Steel with tin surface finish
- Length L: 4 mm (+0.1 mm tolerance)
- Operating Temperature Range: -55°C to +150°C
- Solder Paste Thickness: 150 μm minimum
- Maximum Tightening Torque: 0.35 N·m
- Certification: RoHS, REACH, Halogen Free (IEC 61249-2-21, JEDEC JS709B)
- Storage Conditions: < 40°C; < 75% RH in original packaging
- MSL: 1
- Packaging: Tape and reel, with polyimide tape for automatic assembly
- Package Dimension: Typical hole size and thread specifications appropriate for SMT applications
- Reflow Profile: Min. preheat temperature 150°C, max 200°C; Peak temperature 260°C for PB-free assembly
- Dimensional Tolerance: Based on DIN ISO 2768-1m standard
Buy the Wirth SMT Steel Spacer Series WA-SMSI: 9774040151R
Order the Wirth Elektronik SMT Steel Spacer with internal thread now and enhance your electronic assembly process with reliable, robust, and RoHS-compliant components. Designed for surface-mount technology, this durable steel spacer ensures precise spacing and mechanical stability. It features a tin surface, suitable for high-temperature reflow soldering with a recommended paste thickness of 150 μm, and can operate within -55°C to +150°C. Ideal for high-volume PCB manufacturing, this package includes tape and reel for automated placement, making your assembly efficient and dependable.
Get Wirth Elektronik SMT Steel Spacer with internal thread today—built for precision and long-lasting durability in automated PCB assembly.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 9774040151R?
You can click on the BUY or RFQ button to purchase 9774040151R from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 9774040151R?
You can download the 9774040151R datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 9774040151R?
WURTH ELEKTRONIK
