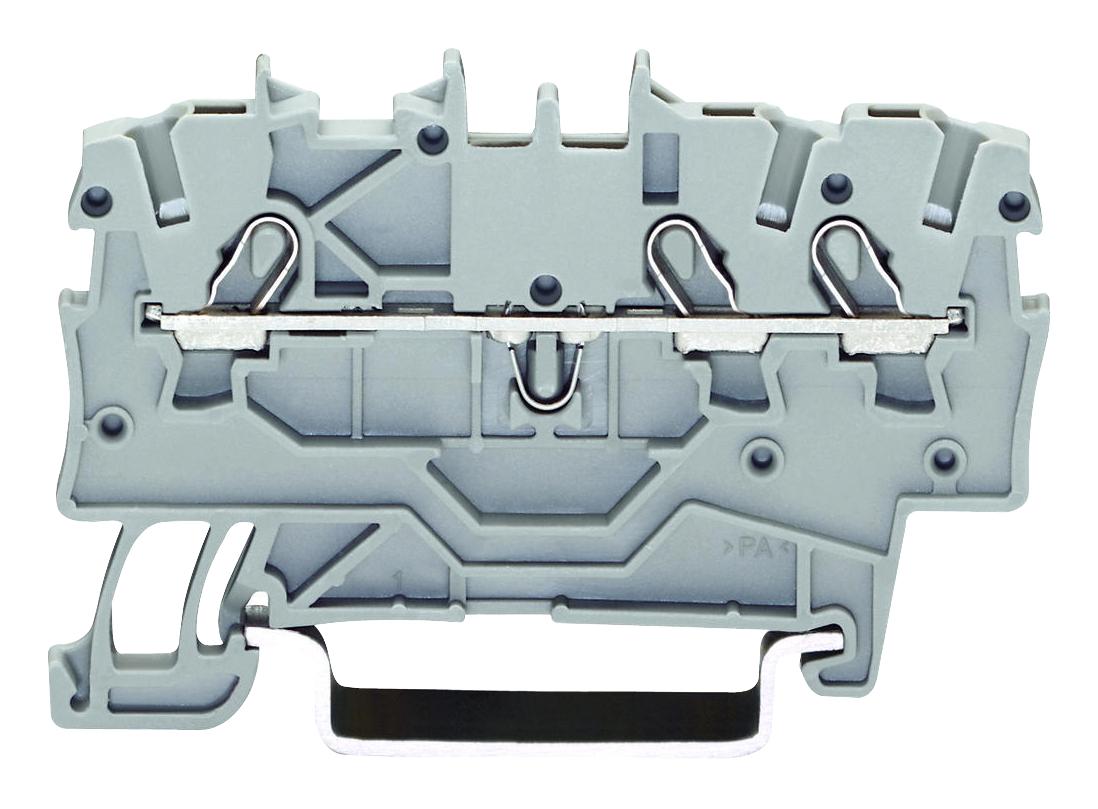

WAGO 20001301 3-Conductor Terminal Block

WAGO 20001301 3-Conductor Terminal Block Specifications:

• Supplier: WAGO
• Item no.: 2000-1301
• GTIN / EAN: 4045454966843
• Content: 1
• Order amount: 100
• Total number of connection points: 3
• Total number of potentials: 1
• Color: gray
• Ratings according to 1: IEC/EN 60947-7-1
• Pollution degree (1): 3
• Rated voltage EN (1) [V]: 800 V
• Rated surge voltage (1) [kV]: 8 kV
• Nominal current [A]: 13.5 A
• Nominal current (2) [A]: 18 A
• Rated voltage EN (Ex e II) [V]: 550 V
• Nominal current (Ex e II) [A]: 13 A
• Nominal current (Ex e II) with jumper [A]: 12 A
• Connection technology (1): Push-in CAGE CLAMP®
• Nominal cross section 1: 1 mm²
• Solid sizes 1: 0.14 … 1.5 mm² / 24 … 16 AWG
• solid, directly pluggable 1: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded wires 1: 0.14 … 1.5 mm² / 24 … 16 AWG
• min. fine-stranded with insulated ferrule, push-in terminati: 0.5 mm² / 20 AWG
• Strip length 1: 9 … 11 mm / 0.35 … 0.43 in
• Type of wiring: Front-entry wiring
• Design: horizontal
• Marking level: Center/Side marking
• Insulating material: Polyamide 66 (PA 66)
• Fire load [MJ]: 0.088 MJ
• Weight [g]: 4.205 g
• Width: 3.5 mm / 0.138 in
• Height from upper-edge of DIN-rail [mm]: 32.9 mm
• Height from upper-edge of DIN-rail: 32.9 mm / 1.295 in
• Length: 58.2 mm / 2.291 in
• Type of mounting: DIN 35 rail
