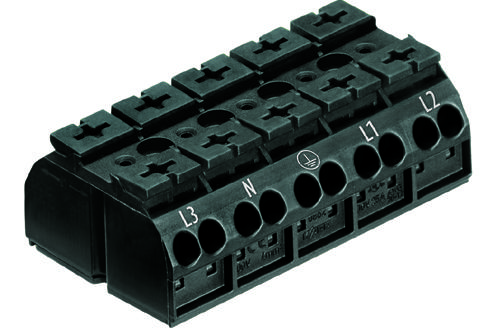

WAGO 862505 4-conductor terminal strip
The WAGO 862-505 is a 4-conductor chassis-mount terminal strip, offering a robust and reliable solution for electrical connections in industrial environments. Designed with WAGO's renowned push-in CAGE CLAMP technology, it ensures secure and efficient termination of conductors. This 5-pole terminal strip is suitable for applications requiring high current carrying capacity (32A) and voltage resistance (500V). Its chassis-mount design provides stability and ease of integration into various systems. The strip supports a wide range of conductor sizes, making it versatile for diverse wiring needs. Compliant with relevant standards and approvals, the WAGO 862-505 ensures safety and performance in demanding applications.
WAGO 862505 4-conductor terminal strip Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 32 A
- Connection technology: Push-in CAGE CLAMP
- Connectable conductor materials: Copper
- Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 … 2.5 mm² / 20 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 mm² / 18 AWG
- Strip length: 10 … 11 mm / 0.39 … 0.43 inch
- No. of poles: 5
- Total number of connection points: 20
- Total number of potentials: 5
- Type of wiring: Side-entry wiring
- Pin spacing: 12 mm / 0.472 inch
- Width: 60 mm / 2.362 inch
- Height from the surface: 22.3 mm / 0.878 inch
- Depth: 35 mm / 1.378 inch
- Mounting type: Screw mounting
- Color: black
- Fire load: 0.641 MJ
- Weight: 34.1 g
- Packaging type: bag
- Country of origin: DE
- GTIN: 4044918509060
- Customs Tariff No.: 85369010000
