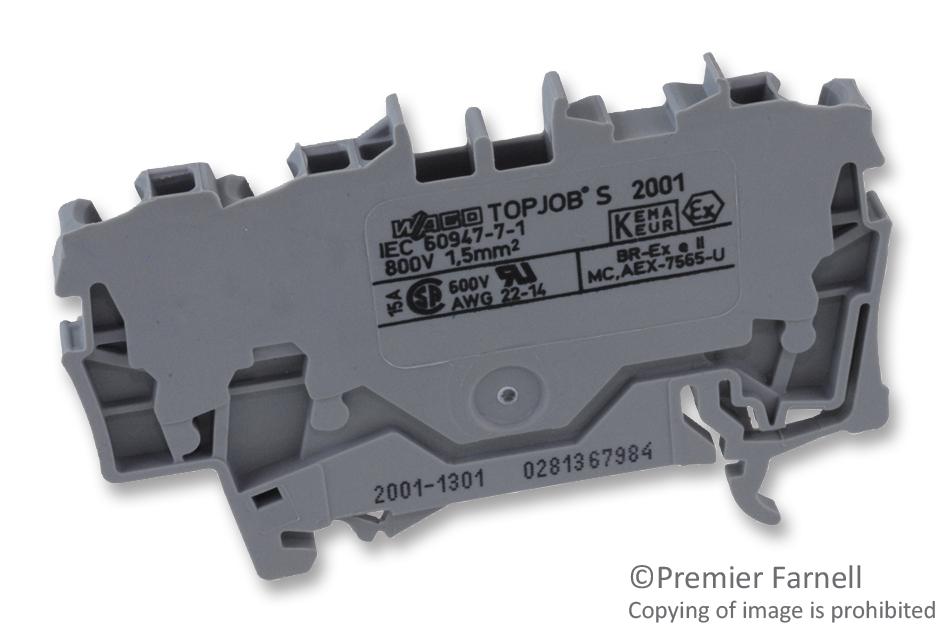

WAGO 20011301 3-conductor Terminal Block
The WAGO 2001-1301 is a robust 3-conductor through terminal block engineered for demanding industrial environments, particularly those requiring Ex e II compliance. Utilizing WAGO’s Pushin CAGE CLAMP® connection technology, it ensures secure and efficient wire termination. The block is designed for mounting on DIN rails (35 x 15 and 35 x 7.5) and accommodates conductor cross-sections ranging from 0.25 to 2.5 mm². Its gray polyamide (PA66) housing and V0 flammability rating contribute to its durability and safety. This terminal block is ideal for applications in control cabinets, automation systems, and power distribution.
WAGO 20011301 3-conductor Terminal Block Specifications:
- Electrical data: Subject to changes. Refer to product documentation.
- Nominal voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 18 A
- Rated current 2: 24 A
- Ratings per UL (Use Group B): 600 V
- Rated current UL (Use Group B): 15 A
- Ratings per CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 17 A
- Rated current (Ex e II) with jumper: 16 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1.5 mm²
- Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
- Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 2
- Width: 4.2 mm / 0.165 inch
- Height: 59.2 mm / 2.33 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: gray
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Weight: 4.9 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332998628
- Customs tariff number: 85369010000
