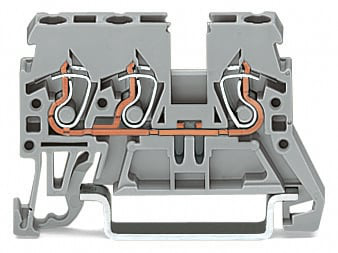

WAGO 870681 3-conductor terminal block
The WAGO 870-681 is a versatile 3-conductor through terminal block designed for use in industrial control and automation systems. It is mounted on DIN rails (35 x 15 and 35 x 7.5) and features a CAGE CLAMP® connection, known for its ease of use and reliable clamping force. The block accommodates conductors ranging from 0.08 to 2.5 mm² and is suitable for applications requiring secure and organized wiring. Its gray color and lateral marker slots facilitate clear identification and efficient maintenance. The WAGO 870-681 is a crucial component in building robust and reliable electrical circuits.
WAGO 870681 3-conductor terminal block Specifications:
- Nominal voltage (III/3): 500 V
- Rated surge voltage (III/3): 6 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height: 49 mm / 1.929 inch
- Depth from upper edge of DIN-rail: 27.5 mm / 1.083 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
- Color: gray
- Insulation material: Polyamide (PA66)
- Fire load: 0.101 MJ
- Weight: 6 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454094553
- Customs tariff number: 85369010000
Buy the 870-681 WAGO 3-conductor terminal block | myMectronic
Purchase the WAGO 870-681 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 870681?
You can click on the BUY or RFQ button to purchase 870681 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 870681?
You can download the 870681 datasheet or visit the WAGO website for support.
Who is the manufacturer of 870681?
WAGO
