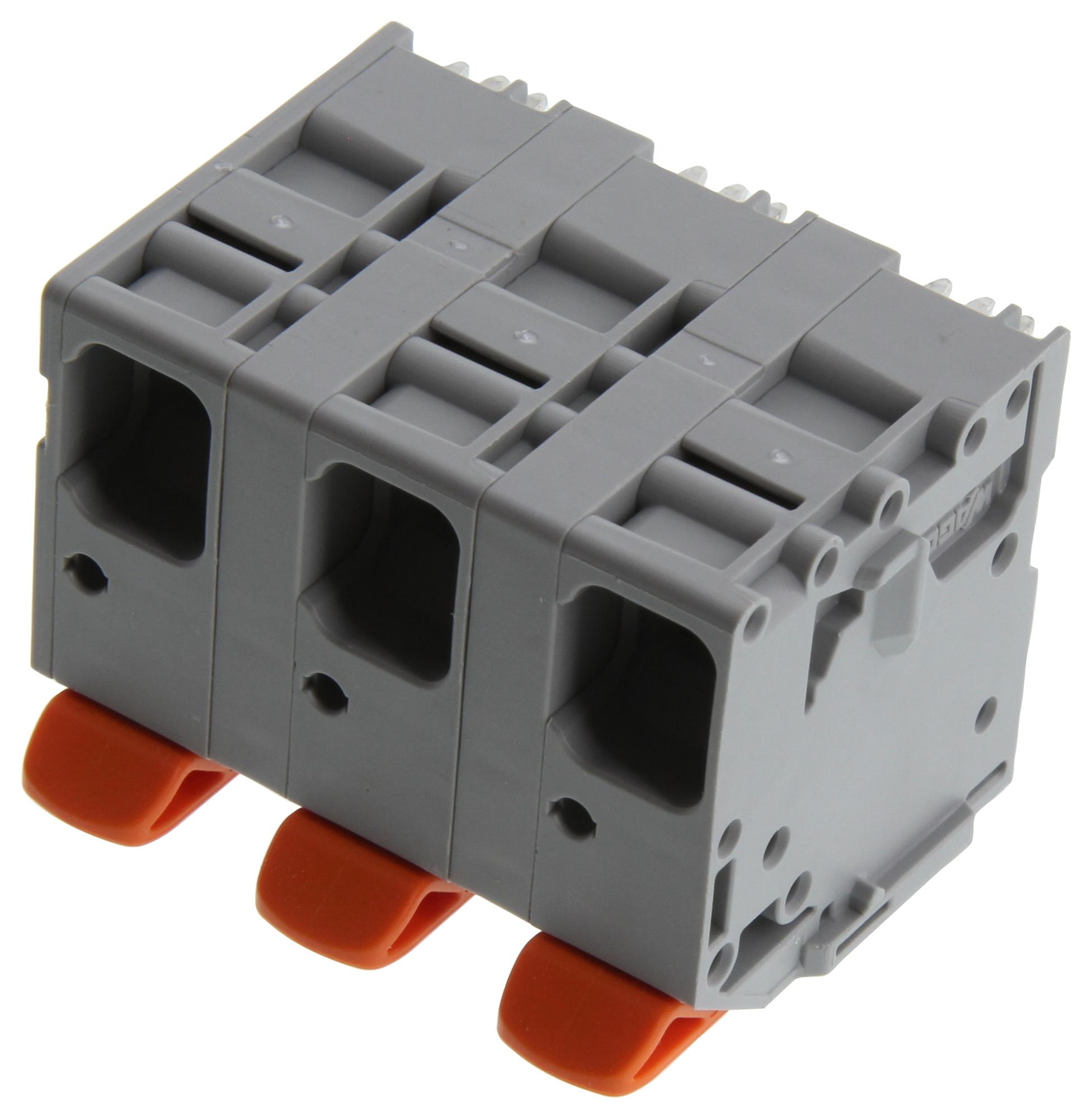

WAGO 26163353 PCB Terminal Block
This is a 3-pole PCB terminal block featuring lever-operated push-in CAGE CLAMP® connections. It supports push-in termination for both solid and ferruled conductors, allowing for intuitive, tool-free operation. Multiple clamping units can be opened simultaneously, making it convenient for terminating multi-core cables. Testing can be performed both parallel and perpendicular to the conductor entry. The terminal block has grey polyamide (PA66) insulation with a flammability rating of UL94 V0. It complies with IEC and UL standards, rated for 800V and 78A, suitable for industrial automation and electrical distribution.
WAGO 26163353 PCB Terminal Block Specifications:
- Pin spacing: 15 mm / 0.591 inch
- Number of poles: 3
- Total connection points: 3
- Rated voltage: 800 V (IEC/EN 60664-1)
- Rated surge voltage: 8 kV
- Rated current: 78 A (UL Use Group B and C), 5 A (UL Use Group D)
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Lever
- Conductor range: Solid 0.75 ... 16 mm² / 18 ... 4 AWG, Fine-stranded 0.75 ... 25 mm² / 18 ... 4 AWG
- Strip length: 18 ... 20 mm / 0.71 ... 0.79 inch
- Material: Polyamide 66 (PA66) insulation, chrome nickel spring steel clamp, electrolytic copper contact, tin-plated
- Color: Gray
- Dimensions: Width 41.5 mm / 1.634 inch, Height 38.2 mm / 1.504 inch, Depth 29.4 mm / 1.157 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 1.2 x 1.2 mm
- Operating temperature: -60°C to +105°C
Buy the WAGO Series 2616-3353 PCB Terminal Block: 15mm Pin Spacing
Buy the WAGO Series 2616-3353 PCB terminal block now and benefit from easy tool-free push-in connections, multi-core cable termination, and robust IEC/UL standards compliance. Perfect for industrial automation, control panels, and electrical distribution systems. Its lever operation simplifies installation, while its wide conductor range ensures versatility. Manufactured with high-quality polyamide insulation and corrosion-resistant contact materials, this 3-pole terminal block guarantees durability and safety in demanding environments. Order online today and enhance your wiring efficiency with reliable WAGO connectivity components.
Order your WAGO Series 2616-3353 PCB terminal block today and ensure reliable connections for your industrial automation projects.
