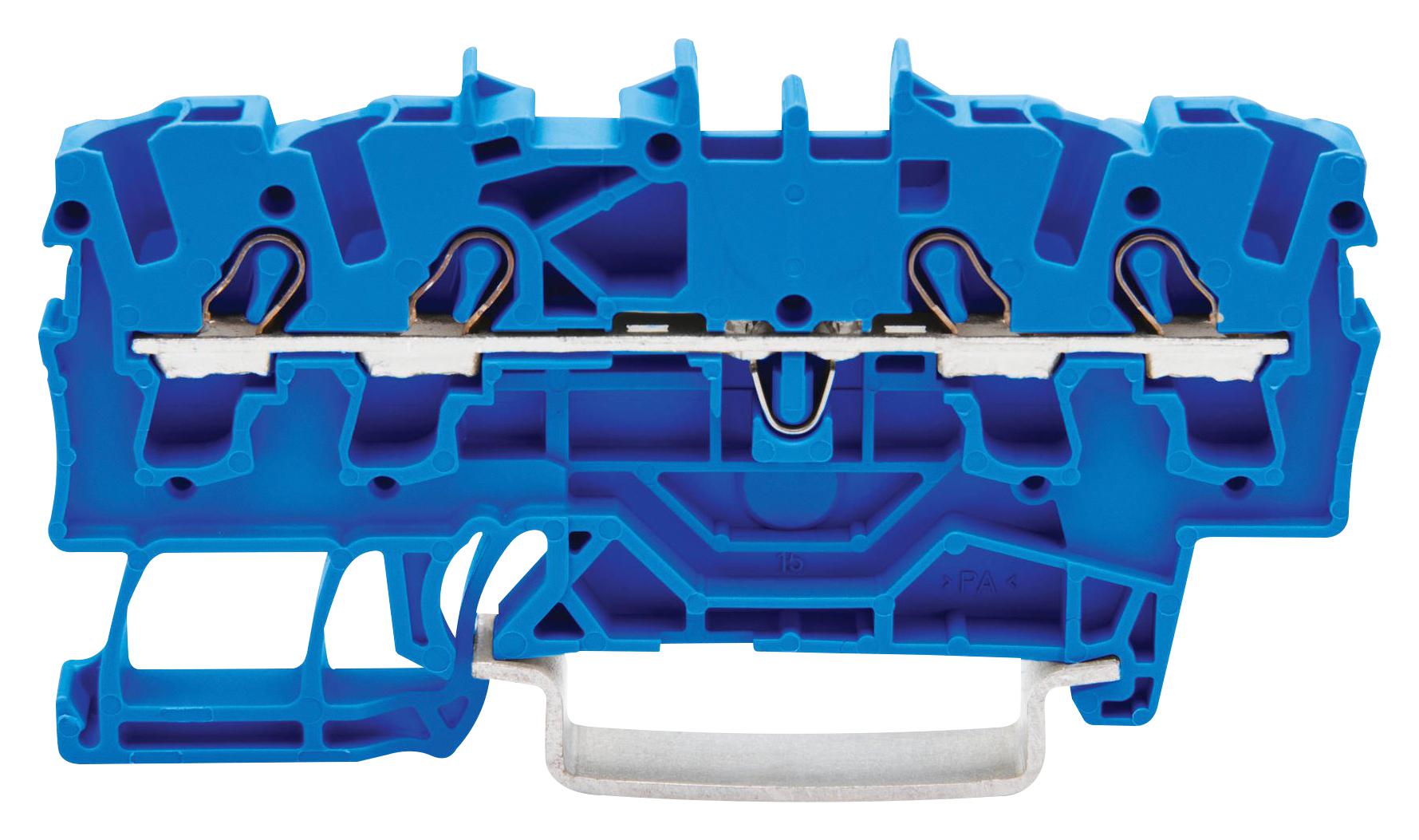

WAGO 20021404 4-conductor Terminal Block
The WAGO 2002-1404 is a robust and reliable 4-conductor through terminal block specifically engineered for use in hazardous environments, meeting Ex e II and Ex i application requirements. Utilizing WAGO’s innovative Push-in CAGE CLAMP® connection technology, this terminal block ensures secure and efficient conductor termination. It is designed for mounting on DIN-rail 35 x 15 and 35 x 7.5, making it suitable for a wide range of industrial control and power distribution panels. The terminal block’s blue color and side/center marking options facilitate easy identification and organization within electrical systems. Its construction with polyamide 66 (PA 66) ensures durability and resistance to environmental factors, making it a dependable choice for demanding industrial applications.
WAGO 20021404 4-conductor Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Rated current (2): 32 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 20 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 22 A
- Rated current (Ex e II) with jumper: 20 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 69.9 mm / 2.752 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.122 MJ
- Weight: 7.5 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332999304
- Customs Tariff No.: 85369010000
