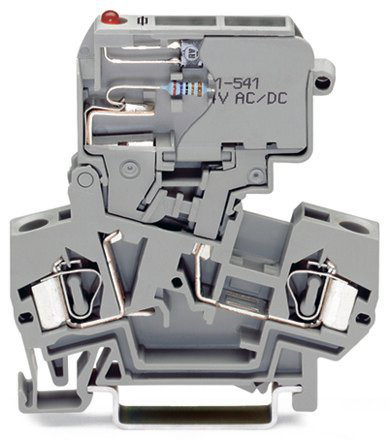

WAGO 281611281542 2-conductor fuse terminal block
The WAGO 281-611/281-542 is a versatile 2-conductor fuse terminal block ideal for industrial applications requiring fuse protection. It accommodates 5x20mm miniature fuses and provides visual blown fuse indication via an LED. The CAGE CLAMP® connection ensures reliable termination of conductors, and the block is designed for mounting on DIN rails. Aluminum conductors can be used with the addition of WAGO “Alu-Plus” Contact Paste to prevent oxidation and corrosion. Rated for 800V and 10A, this terminal block offers robust performance in various electrical systems.
WAGO 281611281542 2-conductor fuse terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 10 A
- Operation status indicator: 30 … 65 V
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Total number of connection points: 2
- Total number of potentials: 2
- Width: 8 mm / 0.315 inch
- Height from upper-edge of DIN-35 rail: 60 mm / 2.362 inch
- Design: angled
- Material: Polyamide 66 (PA 66)
- Fire load: 0.338 MJ
- Weight: 17.9 g
- GTIN: 4045454871468
- Customs Tariff No.: 85369095990
Buy the 281-611/281-542 WAGO 2-conductor fuse terminal block | myMectronic
Purchase the WAGO 281-611/281-542 fuse terminal block securely online for reliable power distribution.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281611281542?
You can click on the BUY or RFQ button to purchase 281611281542 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281611281542?
You can download the 281611281542 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281611281542?
WAGO
