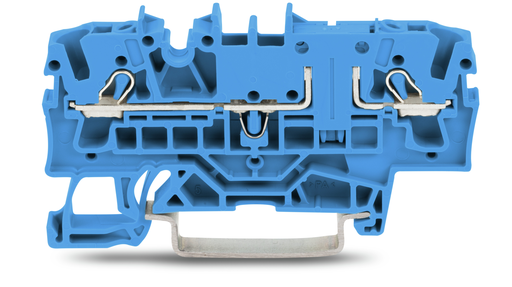

WAGO 20021604 2-Conductor Terminal Block
The WAGO 2002-1604 is a 2-conductor through terminal block ideal for use in electrical distribution systems and control panels. Its Push-in CAGE CLAMP® technology ensures quick and secure connections, while the compact design allows for efficient space utilization on DIN rails. The terminal block is suitable for a wide range of applications, including industrial automation, building management, and power distribution, offering reliable performance and ease of installation. It supports various conductor materials and sizes, making it versatile for different wiring needs.
WAGO 20021604 2-Conductor Terminal Block Specifications:
- Nominal Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 16 A
- Ratings per IEC/EN: IEC/EN 60947-7-1
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group C): 300 V
- Rated Current UL (Use Group C): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group C): 300 V
- Rated Current CSA (Use Group C): 15 A
- Ratings per ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
- Rated Voltage EN (Ex e II): 440 V
- Rated Current (Ex e II): 17 A
- Connection Technology: Push-in CAGE CLAMP®
- Actuation Type: Push-in
- Connectable Conductor Materials: Copper
- Nominal Cross-Section: 2.5 mm²
- Solid Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid Conductor; Push-in Termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-Stranded Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-Stranded Conductor; with Insulated Ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-Stranded Conductor; with Ferrule; Push-in Termination: 1 … 2.5 mm² / 18 … 14 AWG
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Total Number of Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Number of Jumper Slots: 2
- Width: 5.2 mm / 0.205 inch
- Height: 66.1 mm / 2.602 inch
- Depth from Upper Edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting Type: DIN-35 rail
- Marking Level: Center/side marking
- Color: blue
- Insulation Material: Polyamide (PA66)
- Fire Load: 0.159 MJ
- Weight: 7.6 g
- Product Group: 22 (TOPJOB S)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4045454974664
- Customs Tariff Number: 85369010000
