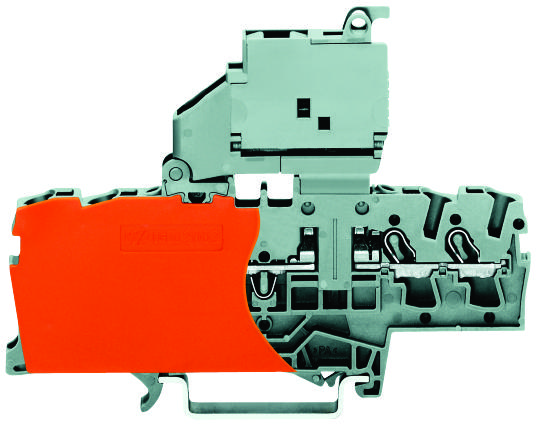

WAGO 20021811 4-conductor fuse terminal block
The WAGO 2002-1811 is a versatile fuse terminal block designed for use in industrial control and distribution panels. It accommodates 5 x 20 mm miniature metric fuses and features a pivoting fuse holder for easy replacement. The terminal block is mounted on DIN-rail 35 x 15 or 35 x 7.5 and utilizes WAGO’s Push-in CAGE CLAMP® connection technology, ensuring reliable and vibration-resistant connections. It is ideal for protecting sensitive electronic circuits from overcurrent conditions in a variety of applications, including automation systems, power supplies, and lighting controls.
WAGO 20021811 4-conductor fuse terminal block Specifications:
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 6.3 A
- Rated voltage UL (Use Group B): 250 V
- Rated current UL (Use Group B): 6.3 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 6.3 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Width: 6.2 mm / 0.244 inch
- Height from upper-edge of DIN-35 rail: 57.2 mm / 2.252 inch
- Depth: 87.5 mm / 3.445 inch
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.341 MJ
- Weight: 16.1 g
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4045454974763
- Customs Tariff No.: 85369095990
