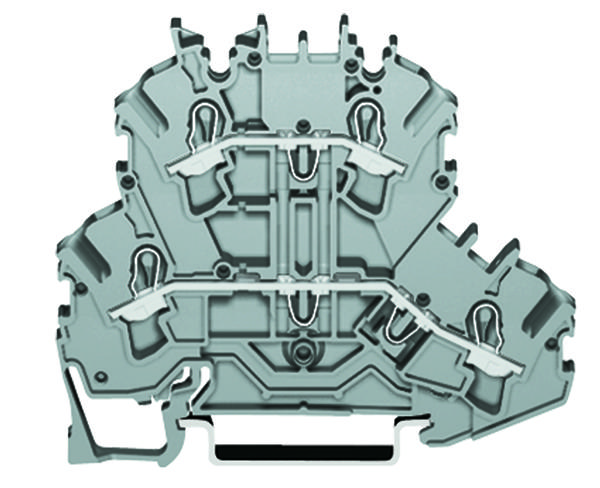

WAGO 20022201 Double-deck Terminal Block
The WAGO 2002-2201 is a robust and reliable double-deck terminal block ideal for industrial applications requiring secure and efficient connections. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block utilizes the Push-in CAGE CLAMP® technology for easy and reliable conductor termination. It is suitable for Ex e II applications, ensuring safety in hazardous environments. With a rated voltage of 500V and a current capacity of 24A, it provides a dependable solution for various power distribution and control circuits.
WAGO 20022201 Double-deck Terminal Block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Rated current (2): 28 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 300 V
- Rated current UL (Use Group C): 20 A
- Rated voltage UL (Use Group D): 600 V
- Rated current UL (Use Group D): 5 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage EN (Ex e II): 440 V
- Rated current (Ex e II): 20 A
- Rated current (Ex e II) with jumper: 18 A
- Connection technology: Push-in CAGE CLAMP®
- Number of connection points (connection type): 2
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 51.7 mm / 2.035 inch
- Depth: 69.7 mm / 2.744 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L/L
- Insulating material: Polyamide 66 (PA 66)
Buy the 2002-2201 WAGO Double-deck Terminal Block | myMectronic
Purchase the WAGO 2002-2201 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20022201?
You can click on the BUY or RFQ button to purchase 20022201 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20022201?
You can download the 20022201 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20022201?
WAGO
