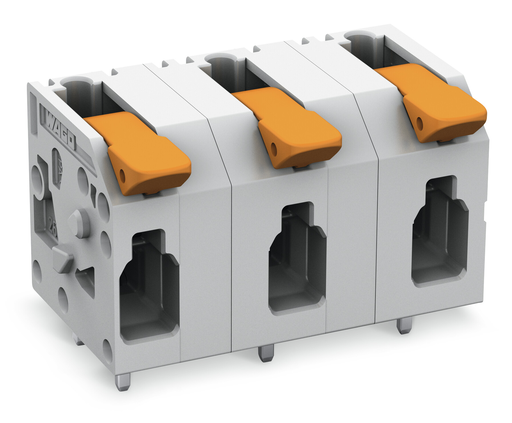

WAGO 26041503 3-pole Lever Terminal Block
The WAGO 2604-1503 is a robust and reliable PCB terminal block designed for secure and efficient electrical connections. Its lever mechanism and Push-in CAGE CLAMP technology simplify termination, while the 3-pole configuration makes it ideal for various industrial applications, including power distribution, automation, and control systems. The block's robust construction and high current rating ensure long-term performance and safety. It is compatible with a range of conductor sizes and offers convenient testing capabilities.
WAGO 26041503 3-pole Lever Terminal Block Specifications:
- Rated Voltage (III/3): 1000 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 32 A
- Rated Voltage UL (Use Group B): 600 V
- Rated Current UL (Use Group B): 20 A
- Connection Technology: Push-in CAGE CLAMP®
- Actuation Type: Lever
- Solid Conductor Size: 0,2 … 4 mm² / 24 … 12 AWG
- Fine-Stranded Conductor Size: 0,2 … 4 mm² / 24 … 12 AWG
- Fine-Stranded Conductor with Ferrule Size: 0,25 … 2,5 mm²
- Strip Length: 9 … 11 mm / 0.35 … 0.43 inch
- Pin Spacing: 11,5 mm / 0.453 inch
- Width: 30,4 mm / 1.197 inch
- Height: 20,7 mm / 0.815 inch
- Material: Polyamide 66 (PA 66)
- Flammability Class: V0
- Weight: 6.9 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4055143564595
- Customs Tariff Number: 85369010000
