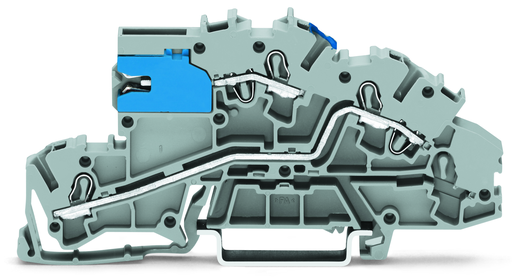

WAGO 20037640 Multilevel Installation Terminal Block
The WAGO 2003-7640 multilevel installation terminal block provides a robust and reliable solution for connecting multiple conductors in industrial applications. Its Push-in CAGE CLAMP® technology ensures secure and time-saving connections, while the N-disconnect slide link simplifies maintenance and troubleshooting. Designed for DIN-35 rail mounting, this terminal block is ideal for control cabinets and distribution panels where space is at a premium. The gray polyamide (PA66) insulation material offers excellent durability and fire resistance, making it suitable for demanding environments.
WAGO 20037640 Multilevel Installation Terminal Block Specifications:
- Color: gray
- Rated surge voltage (III/3): 4 kV
- Rated current: 24 A
- Rated voltage (III/3): 400 V
- Rated surge voltage (III/3) 2: 6 kV
- Rated current 2: 32 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 3
- Total number of potentials: 2
- Number of levels: 3
- Width: 5.2 mm / 0.205 inch
- Height: 96 mm / 3.78 inch
- Depth from upper edge of DIN-rail: 42.3 mm / 1.665 inch
- Potential marking: NT/L
- Design: angled
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Fire load: 0.252 MJ
- Weight: 14.2 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454792695
- Customs tariff number: 85365080900
Buy the 2003-7640 WAGO Multilevel Installation Terminal Block | myMectronic
Purchase the WAGO 2003-7640 terminal block securely online for reliable performance in your industrial applications.
Buy Now
