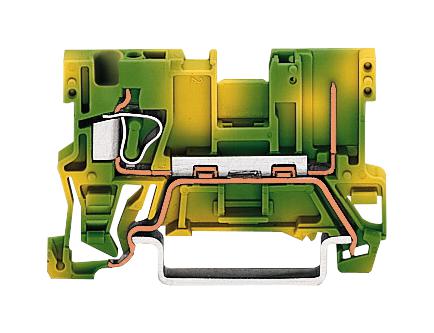

WAGO 769237 1-conductor Ground Carrier Terminal Block
The WAGO 769-237 ground carrier terminal block provides a reliable and efficient solution for grounding applications in electrical distribution systems. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block features a CAGE CLAMP® connection, ensuring secure and vibration-resistant connections. It accommodates conductors ranging from 0.08 to 4 mm² and is color-coded green-yellow for easy identification. The 769-237 is suitable for a wide range of industrial applications, including machinery, control cabinets, and power distribution panels, contributing to the safety and reliability of electrical systems.
WAGO 769237 1-conductor Ground Carrier Terminal Block Specifications:
- Connection technology: CAGE CLAMP®
- Actuation type: Open Tool Slot
- Connectable conductor materials: Copper
- Nominal cross section: 4 mm²
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 28.5 mm / 1.122 inch
- Depth: 52.5 mm / 2.067 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.101 MJ
- Weight: 6.8 g
- Product Group: 18 (X-COM-System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918827843
- Customs Tariff No.: 85366990990
Buy the 769-237 WAGO 1-conductor Ground Carrier Terminal Block | myMectronic
Purchase the WAGO 769-237 ground carrier terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 769237?
You can click on the BUY or RFQ button to purchase 769237 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 769237?
You can download the 769237 datasheet or visit the WAGO website for support.
Who is the manufacturer of 769237?
WAGO
