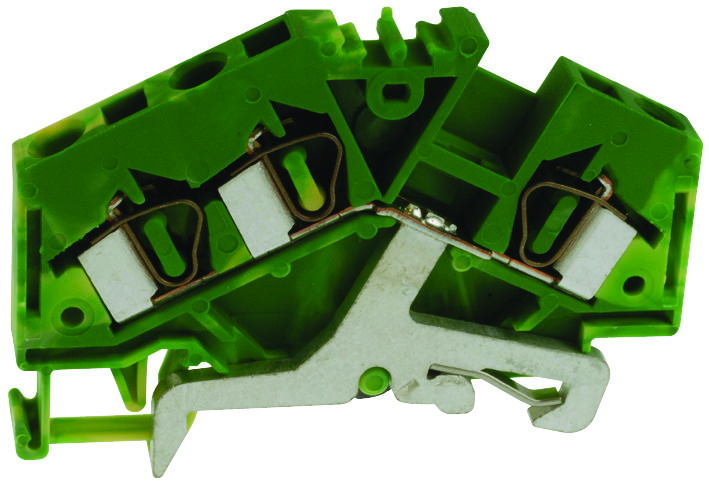

WAGO 281637 2-Conductor Terminal Block
The WAGO 281-637 is a 2-conductor terminal block suitable for various industrial applications requiring secure and reliable connections. Its CAGE CLAMP® connection technology ensures consistent termination quality, while the compact design (18mm height, 6mm width, 28mm depth) makes it ideal for space-constrained environments. It supports wire gauges from 28-14 AWG and has a current intensity of 24A, making it suitable for a wide range of power and signal transmission applications. A mounting adapter is available for TS 35 rails.
WAGO 281637 2-Conductor Terminal Block Specifications:
- Product Group: 9 (Std Chassis Mt Blocks)
- Cross Section mm²: 0.08 - 2.5 mm²
- Cross Section AWG: 28 - 14 AWG
- Connection Method: CAGE CLAMP® CONNECTION
- Measured Voltage EN: 500 V
- Measured Shock Voltage: 6 kV
- Pollution Degree: 3
- Current Intensity EN: 24 A
- Weight: 2.26 g
- Color: orange
- Wiring Type: Side-entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 18 mm
- Height in: 0.709 in
- Width: 6 mm
- Width in: 0.236 in
- Depth: 28 mm
- Depth in: 1.103 in
- Strip Length from: 8 mm
- Strip Length to: 9 mm
- Strip Length in: 0.33 in
Buy the 281-637 WAGO 2-Conductor Terminal Block | myMectronic
Purchase the WAGO 281-637 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281637?
You can click on the BUY or RFQ button to purchase 281637 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281637?
You can download the 281637 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281637?
WAGO
