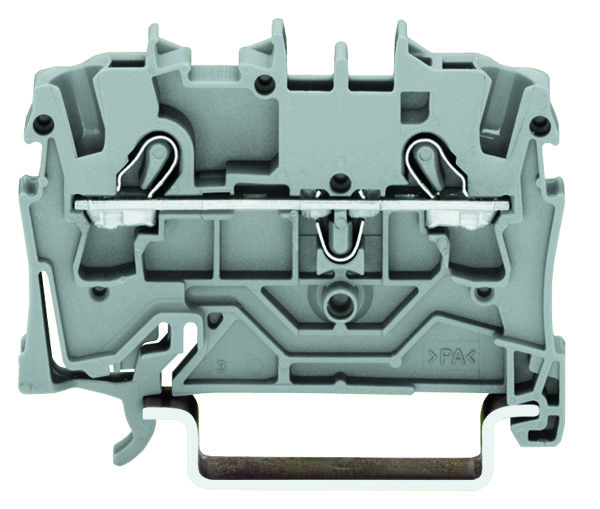

WAGO 20041201 2-Conductor Terminal Block
The WAGO 2004-1201 is a robust and reliable 2-conductor through terminal block designed for demanding industrial environments. It is suitable for Ex e II applications, ensuring safe operation in hazardous areas. The Push-in CAGE CLAMP® connection technology simplifies wiring and provides a secure connection for conductors ranging from 0.5 to 6 mm². The terminal block is designed for mounting on DIN-rail 35 x 15 and 35 x 7.5, making it easy to integrate into existing electrical panels. With a rated voltage of 800V and a rated current of 32A, it is suitable for a wide range of applications in industrial automation, power distribution, and control systems.
WAGO 20041201 2-Conductor Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 32 A
- Rated current (2): 41 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 30 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 30 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 30 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 30 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 30 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 4 mm²
- Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Solid conductor, push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
- Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1.5 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1.5 … 4 mm² / 18 … 12 AWG
- Strip length: 11 … 13 mm / 0.43 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 6.2 mm / 0.244 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 52.3 mm / 2.059 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.135 MJ
- Weight: 7.1 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332071055
- Customs Tariff No.: 85369010000
