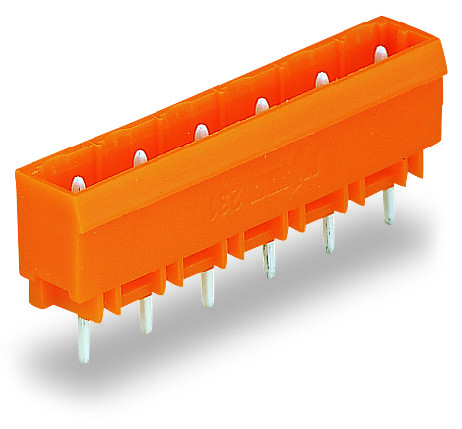

WAGO 231737001000 7-pole Male Connector
The WAGO 231-737/001-000 is a robust 7-pole male connector ideal for various industrial applications requiring secure and reliable connections. Its vertical PCB mounting design, combined with straight solder pins and a 7.62mm pitch, ensures efficient space utilization. The connector's enclosed pin housing design prevents mismating, while coding options provide an extra layer of protection against incorrect connections. With a nominal current capacity of up to 16A and a rated voltage of 630V, this connector is suitable for demanding electrical environments. The 1.2 x 1.2mm solder pins enhance stability, and the polyamide 6.6 (PA 6.6) insulating material ensures excellent insulation and flammability resistance (V0 rating).
WAGO 231737001000 7-pole Male Connector Specifications:
- No. of Poles: 7
- Color: orange
- Ratings according to 1: IEC/EN 60664-1
- Overvoltage category EN 1: III
- Pollution degree (1): 2
- Rated voltage EN (1) [V]: 630
- Rated surge voltage (1) [kV]: 6
- Nominal current [A]: 12
- Overvoltage category EN 2: II
- Degree of pollution (2): 2
- Rated voltage EN (2) [V]: 1000
- Bemessungsstossspannung (2) [kV]: 6
- Overvoltage category EN 3: III
- Degree of pollution (3): 3
- Rated voltage EN (3) [V]: 500
- Rated surge voltage (3) [kV]: 6
- Solder pin length [mm]: 5
- Solder pin width A [mm]: 1
- Solder pin width B [mm]: 1
- Drilled hole diameter [mm]: 1.4
- Tolerance of drilled hole diameter [mm]: +0.1
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating per UL 94: V0
- Lower limit temperature [C]: -60
- Upper temperature limit [C]: 100
- Contact material: Electrolytic copper (Ecu)
- Contact plating: tin-plated
- Fire load [MJ]: 0.056
- Weight [g]: 2.756
- Width [mm]: 53.72
- Width [in]: 2.115
- Height [mm]: 12
- Height [in]: 0.472
- Length [mm]: 8.4
- Length [in]: 0.331
- Pin spacing from [mm]: 7.62
- Pin spacing up to [mm]: 7.62
- Pin spacing from [in]: 0.3
- Pin spacing up to [in]: 0.3
