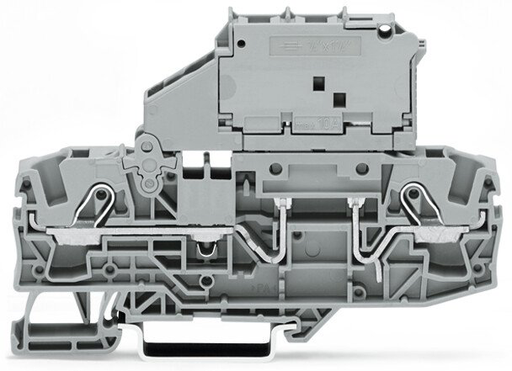

WAGO 200616311000836 2-conductor fuse terminal block
The WAGO 2006-1631/1000-836 is a versatile fuse terminal block suitable for a range of industrial applications requiring circuit protection. It is designed for mounting on DIN rails (35 x 15 and 35 x 7.5) and accommodates glass cartridge fuses. The integrated LED provides visual indication of a blown fuse, enhancing safety and maintenance. The Push-in CAGE CLAMP® connection ensures reliable termination of conductors, and the block is rated for 230V and 10A, making it suitable for various power distribution and control circuits. Its robust construction and clear indication features make it a reliable choice for industrial environments.
WAGO 200616311000836 2-conductor fuse terminal block Specifications:
- Number of conductors: 2
- Fuse type: ¼" x 1¼"
- Voltage rating: 230 V
- Current rating: 10 A
- Connection technology: Push-in CAGE CLAMP®
- Conductor size: 0.5 - 10 mm²
- Mounting type: DIN-rail 35 x 15 / 35 x 7.5
- Material: Polyamide 66 (PA 66)
- Weight: 25.1 g
- IEC/EN 60947-7-3 Rated voltage (III / 3): 800 V
- IEC/EN 60947-7-3 Rated impulse voltage (III / 3): 8 kV
- UL Use Group B Rated voltage: 230 V
- UL Use Group B Rated current: 15 A
- CSA Use Group B Rated voltage: 600 V
- CSA Use Group B Rated current: 15 A
