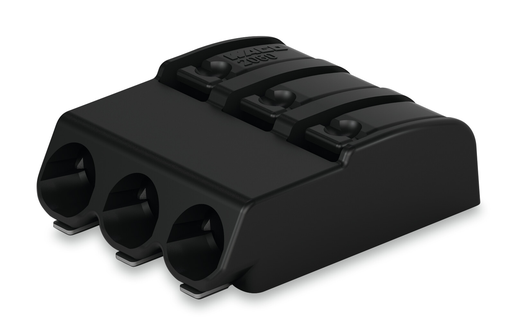

WAGO 2060473998404 3-pole PCB Terminal Block
The WAGO 2060-473/998-404 SMD PCB terminal block offers a robust and efficient connection solution for printed circuit boards. Utilizing the innovative Push-in CAGE CLAMP® technology and convenient push-buttons, this terminal block simplifies conductor termination and removal, particularly for fine-stranded conductors. Its compact design, combined with availability in tape-and-reel packaging, makes it ideal for automated assembly processes in various industrial applications, including electronics manufacturing and automation systems. The block is designed to withstand lead-free reflow soldering processes, ensuring reliability and compatibility in modern production environments.
WAGO 2060473998404 3-pole PCB Terminal Block Specifications:
- Rated voltage (III/3): 63 V
- Rated surge voltage (III/3): 2.5 kV
- Rated voltage (III/2): 160 V
- Rated surge voltage (III/2): 2.5 kV
- Rated voltage (II/2): 320 V
- Rated surge voltage (II/2): 2.5 kV
- Rated current: 9 A
- Solid conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
- Fine-stranded conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 0.34 mm²
- Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.34 mm²
- Strip length: 7 … 9 mm / 0.28 … 0.35 inch
- Pin spacing: 4 mm / 0.157 inch
- Width: 11.9 mm / 0.469 inch
- Height: 4.5 mm / 0.177 inch
- Depth: 13.1 mm / 0.516 inch
- Material group: I
- Insulation material: Polyphthalamide (PPA GF)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Copper alloy
- Contact plating: tin-plated
- Limit temperature range: -60 … +105 °C
