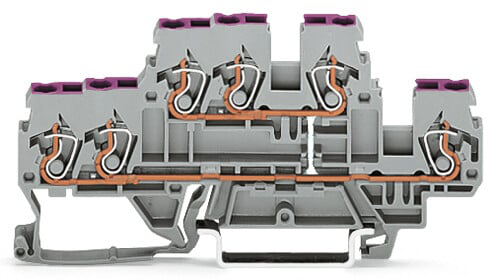

WAGO 870539 3-conductor double-deck terminal block
The WAGO 870-539 terminal block is a robust and reliable solution for connecting multiple conductors in industrial applications. Its double-deck design allows for efficient space utilization on DIN rails. The CAGE CLAMP® connection technology ensures secure and vibration-resistant connections, while the gray polyamide 66 housing provides excellent insulation and durability. This terminal block is ideal for use in control cabinets, automation systems, and power distribution panels where reliable and compact connectivity is required.
WAGO 870539 3-conductor double-deck terminal block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 6
- Total number of potentials: 1
- Number of levels: 2
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 40 mm / 1.575 inch
- Depth: 91 mm / 3.583 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L
- Marking level: Side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.2 MJ
- Weight: 14.2 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454094539
- Customs Tariff No.: 85369010000
- Max. insulation diameter: 4.4mm
Buy the 870-539 WAGO 3-conductor double-deck terminal block | myMectronic
Purchase the WAGO 870-539 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 870539?
You can click on the BUY or RFQ button to purchase 870539 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 870539?
You can download the 870539 datasheet or visit the WAGO website for support.
Who is the manufacturer of 870539?
WAGO
