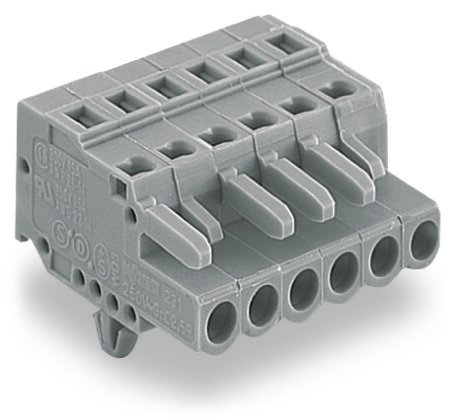

WAGO 231105008000 5-pole Female Connector
The WAGO 231-105/008-000 is a versatile 5-pole female connector ideal for various industrial applications. Its snap-in mounting foot allows for easy integration into panels, while the codable design and locking latches ensure secure and reliable connections. The connector supports a wide range of conductor types, including solid, fine-stranded, and ferruled conductors, making it suitable for diverse wiring needs. It's designed for easy cable pre-assembly and on-unit wiring via CAGE CLAMP® actuation, and includes integrated test ports for convenient troubleshooting.
WAGO 231105008000 5-pole Female Connector Specifications:
- No. of Poles: 5
- Total number of connection points: 5
- Total number of potentials: 5
- Color: gray
- Ratings according to 1: IEC/EN 60664-1
- Overvoltage category EN 1: III
- Pollution degree (1): 2
- Rated voltage EN (1) [V]: 320
- Rated surge voltage (1) [kV]: 4
- Nominal current [A]: 16
- Overvoltage category EN 2: II
- Degree of pollution (2): 2
- Rated voltage EN (2) [V]: 630
- Bemessungsstossspannung (2) [kV]: 4
- Nominal current (2) [A]: 16
- Overvoltage category EN 3: III
- Degree of pollution (3): 3
- Rated voltage EN (3) [V]: 320
- Rated surge voltage (3) [kV]: 4
- Nominal current (3) [A]: 16
- Connection technology (1): CAGE CLAMP®
- Conductor type (1): solid
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 2.5
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 12
- Conductor type (2): fine-stranded
- Cross section from (2) [mm²]: 0.08
- Cross section up to (2) [mm²]: 2.5
- Conductor type (3): fine-stranded (with insulated ferrule)
- Cross section from (3) [mm²]: 0.25
- Cross section up to (3) [mm²]: 1.5
- Conductor type (4): fine-stranded (with uninsulated ferrule)
- Cross section from (4) [mm²]: 0.25
- Cross section up to (4) [mm²]: 2.5
- Stripped length from (1) [mm]: 8
- Stripped length up to (1) [mm]: 9
- Strip length from [inch] [in]: 0.31
- Strip length up to [inch] [in]: 0.35
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating per UL 94: V0
- Lower limit temperature [C]: -60
- Upper temperature limit [C]: 85
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load [MJ]: 0.136
- Weight [g]: 9.27
- Width [mm]: 26.5
- Width [in]: 1.043
- Height [mm]: 14.3
- Height [in]: 0.563
- Length [mm]: 26.5
- Length [in]: 1.043
- Pin spacing from [mm]: 5
- Pin spacing up to [mm]: 5
- Pin spacing from [in]: 0.197
- Pin spacing up to [in]: 0.2
