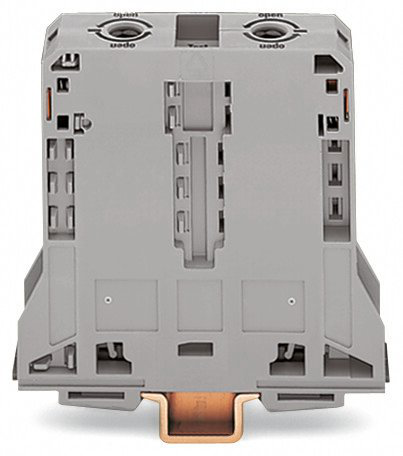

WAGO 285195 2-conductor Through Terminal Block
The WAGO 285-195 is a robust and reliable 2-conductor through terminal block suitable for a wide range of industrial applications. Its POWER CAGE CLAMP technology ensures secure and gas-tight connections, while the lateral marker slots simplify identification and maintenance. Designed for DIN rail mounting, this terminal block is ideal for building compact and efficient electrical distribution systems. It is suitable for applications requiring high current carrying capacity and reliable performance in demanding environments.
WAGO 285195 2-conductor Through Terminal Block Specifications:
- Voltage type 1: AC/DC
- Voltage type 2: DC
- Nominal voltage (III/3): 1000 V
- Rated surge voltage (III/3): 12 kV
- Rated current: 232 A
- Rated voltage (III/3) 2: 1500 V
- Rated surge voltage (III/3) 2: 12 kV
- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 25 … 95 mm² / 4 … 4/0 AWG
- Stranded conductor: 25 … 95 mm² / 4 … 4/0 AWG
- Fine-stranded conductor: 25 … 95 mm² / 4 … 4/0 AWG
- Strip length: 35 mm / 1.38 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Side-entry wiring
- Width: 25 mm / 0.984 inch
- Height from upper-edge of DIN-rail: 101 mm / 3.976 inch
- Depth: 107 mm / 4.213 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
- Insulation material: Polyamide 66 (PA66)
- Fire load: 3.564 MJ
- Weight: 264.3 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4044918452564
- Customs tariff number: 85369010000
