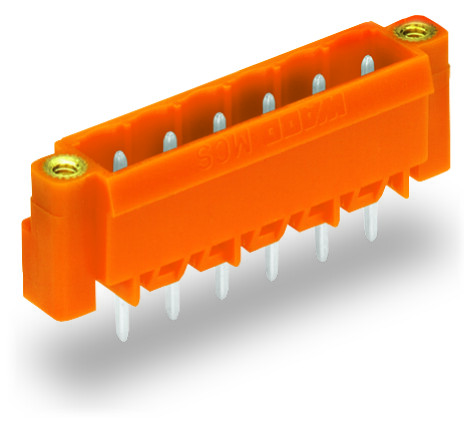

WAGO 231338108000 THT Male Header
The WAGO 231-338/108-000 is a robust THT male header designed for reliable PCB connections. Featuring an 8-pole configuration and a 5.08mm pin spacing, this header is ideal for a wide range of industrial applications, including automation, power distribution, and control systems. The threaded flange provides secure mounting, while the polyamide 66 (PA 66) insulating material ensures excellent electrical insulation and flame retardancy (V0 rating). It is RoHS compliant and certified by UL, CSA, and KEMA, guaranteeing quality and safety. The header supports rated voltages up to 320V and currents up to 12A, making it suitable for demanding applications.
WAGO 231338108000 THT Male Header Specifications:
- Color: orange
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 50.64 mm / 1.994 inch
- Height: 17 mm / 0.669 inch
- Height from the surface: 12 mm / 0.472 inch
- Depth: 8.4 mm / 0.331 inch
- Solder pin length: 5 mm
- Solder pin dimensions: 1 x 1 mm
- Drilled hole diameter (tolerance): 1.4 mm (- … +0.1)
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL (factory wiring only): 600 V
- Rated current per UL (factory wiring only): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- No. of poles: 8
- Total number of potentials: 8
- Number of connection types: 1
- Number of levels: 1
- Contact type (pluggable connector): Male connector/plug
- Connector connection type: for PCBs
- Mismating protection: No
- Mating direction to the PCB: 90 °
- Locking of plug-in connection: Threaded flange
- PCB contact: THT
- Solder pin arrangement: over the entire male connector, in line
- Number of solder pins per potential: 1
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.058 MJ
- Weight: 3.3 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918865470
- Customs Tariff No.: 85366990990
