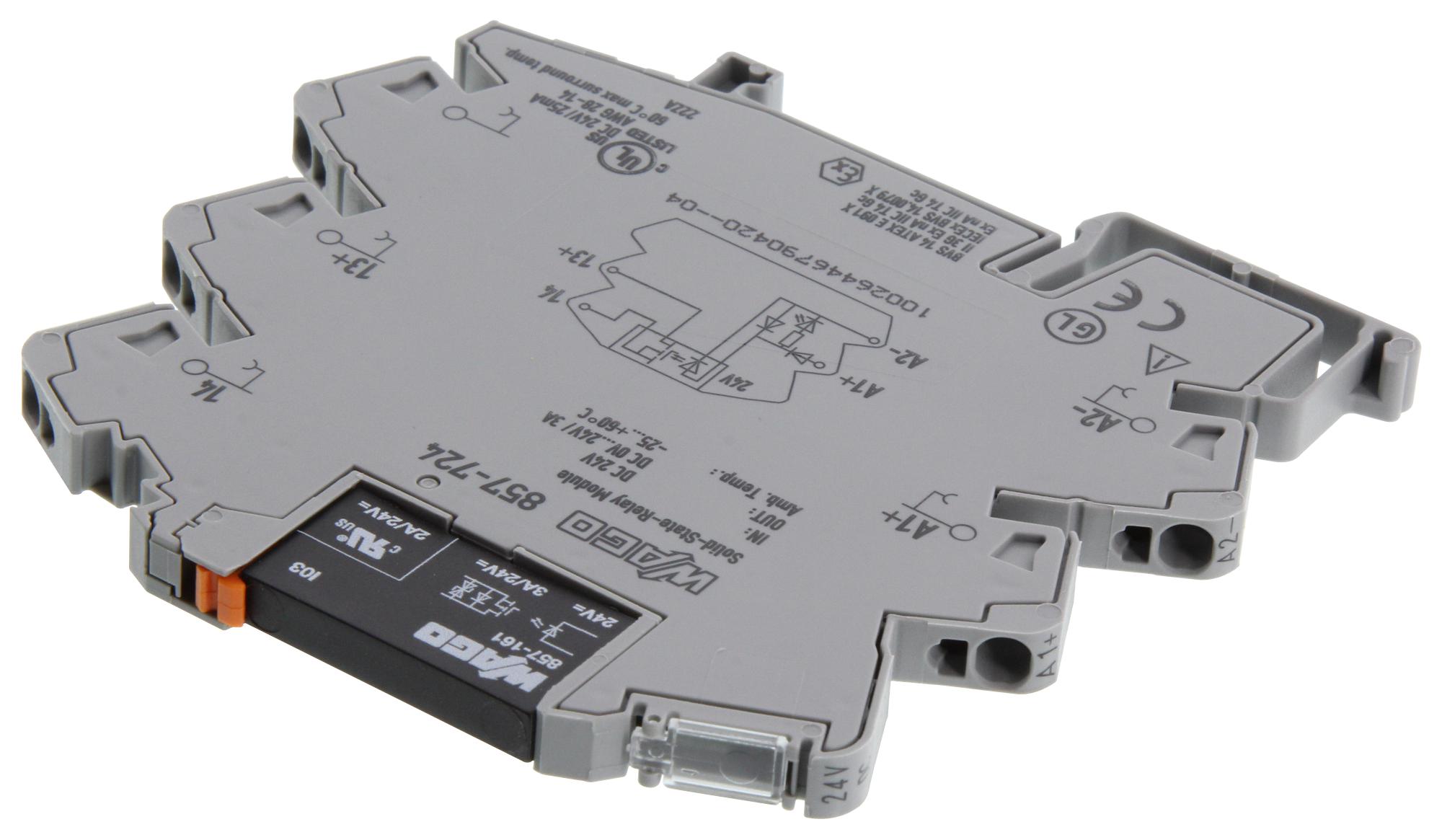

WAGO 857724 Solid-State Relay
This solid-state relay module manages control and load circuits with a nominal input voltage of 24 VDC and output voltage range of 0 to 24 VDC. It supports a continuous current limit of 3 A and features a compact width of 6 mm, ideal for space-saving automation and control applications. Equipped with a yellow status indicator for operational status, it ensures reliable switching with fast response times, making it suitable for signal processing networks requiring high efficiency and compact design. Compatibility with DIN-35 rail mounting enhances installation flexibility in various industrial environments.
WAGO 857724 Solid-State Relay Specifications:
- Control circuit Nominal input voltage Un: 24 VDC
- Input voltage range (low level): DCO...10V
- Input voltage range (high level): DC 188...31.2V
- Nominal input current at Uy: 9.2mA
- Load circuit: Circuit type: 2-wire connection
- Limiting continuous current: 3A
- Inrush current (resistive): 15A/0.01s
- Nominal output voltage: DC 24V
- Output voltage range: DCO...30V
- Switching frequency: Approx. 350 Hz
- Signaling: Yellow LED status indicator
- Dielectric strength, control/load circuit: 3.75 kVrms
- Protection type: IP20
- Connection technology: Push-in CAGE CLAMP for 0.34 to 2.5 mm² (22-14 AWG) conductors
- Physical dimensions: Width 6 mm, Height 81 mm, Depth 94 mm
- Mounting: DIN-35 rail
- Material: Gray plastic housing
- Environmental conditions: Operating at -20°C to 70°C, storage at -40°C to 70°C
- Standards: UL 508, EN 61000-6-2/3, EN 61373, EN 61010-2-201, IECEx, ATEX
- Weight: Approx. 28.49 grams
- Fire load: 0.149 MJ
Buy the Buy WAGO Solid-State Relay Module Item Number 857-724 Online
Purchase the WAGO solid-state relay module 857-724 online now to benefit from superior signal switching, compact space-efficient design, and high current capacity. This module features a 24 VDC control voltage with a 3 A load current limit, ideal for industrial automation and control systems. It’s quick to install with push-in connection technology, supports DIN-35 rail mounting, and has a status indicator for operational monitoring. Order today and give your automation projects dependable, efficient control with minimal space requirements.
Order your WAGO solid-state relay module 857-724 today and ensure reliable, space-saving control in your automation projects.
