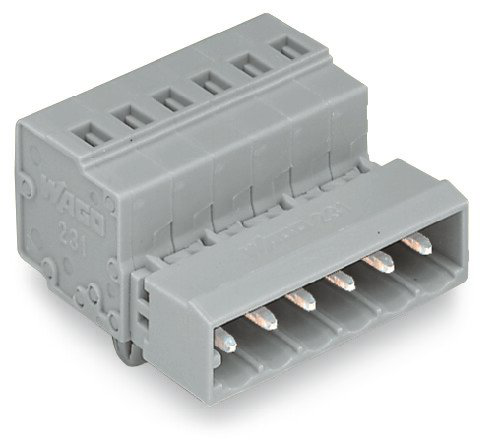

WAGO 231606018000 6 Pole Connector Block
The WAGO 231-606/018-000 is a robust 6-pole connector block ideal for various industrial applications requiring secure and reliable connections. Its snap-in mounting foot simplifies installation on TS 35 rails, while the 5mm pin spacing accommodates diverse wiring needs. The CAGE CLAMP® connection technology ensures a secure and vibration-resistant connection for solid and stranded conductors. This connector block is suitable for use in control cabinets, power distribution systems, and automation equipment, offering a dependable solution for connecting multiple circuits.
WAGO 231606018000 6 Pole Connector Block Specifications:
- Product Description: MALE CONNECTOR WITH SNAP-IN MOUNTING FOOT 6 POLE PIN SPACING 5 MM / 0.197 IN WITH MOUNTING FEET 209-137 ON TS 35 SHEET THICKNESS 0.6x1.2 MM 3.5 MMØ
- Packing Unit: 280 pieces
- Color: gray
- No. of Connection Points: 6
- No. of Potentials: 6
- Pole Count: 6
- Height: 14.3 mm / 0.563 in
- Width: 33.2 mm / 1.307 in
- Depth: 27.5 mm / 1.083 in
- Pin Spacing From: 5 mm / 0.197 in
- Pollution Degree: 2
- Measured Voltage EN: 320 V / 630 V
- Measured Shock Voltage: 4 kV
- Current Intensity EN: 12 A / 16 A
- Connection Method: CAGE CLAMP® CONNECTION
- Cross Section mm2 Solid: 0.08 - 2.5 mm²
- Cross Section mm2 Fine Stranded: 0.08 - 2.5 mm²
- Cross Section mm2 Fine Stranded with Ferrule: 0.25 - 1.5 mm² / 0.25 - 2.5 mm²
- Cross Section AWG: 28 - 12 AWG
- Strip Length From: 8 mm
- Strip Length To: 9 mm
- Material Group: Electrolytic copper (Ecu) tin-plated
- Contact Material: Electrolytic copper (Ecu) tin-plated
- Strain Relief Plate: 30 mm
- BV Approval: 11915/A0
- CCA Approval: 5764
- CSA Approval: 154112-1466354
- KEMA Approval: 2083746.02
- KR Approval: HMB05880-EL003
- UR Approval: E45171 / E45172
- Weight: 9.66 g
