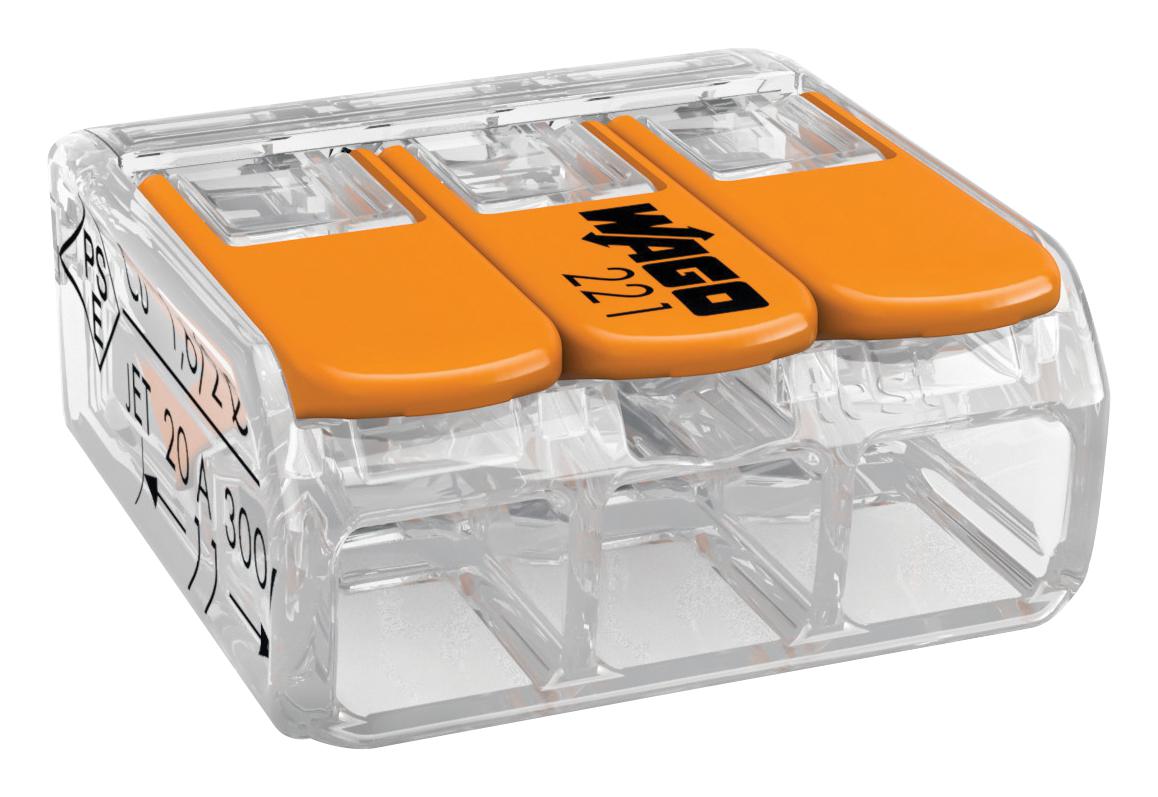

WAGO 221613 Splicing Connector
The WAGO 221-613 compact splicing connector offers a user-friendly solution for connecting various conductor types, accommodating sizes up to 6 mm². Its lever mechanism simplifies the termination process, ensuring secure and reliable connections. Designed for ease of use and efficiency, this connector is ideal for installers and device manufacturers working on projects ranging from low-voltage lighting systems to long cable runs. The transparent housing allows for visual inspection of connections, contributing to overall system reliability. It conforms to mounting carrier standards and allows for custom carrier options.
WAGO 221613 Splicing Connector Specifications:
- Nominal Voltage (II/2): 450 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 41 A
- Rated Voltage UL (Use Group C): 600 V
- Rated Current UL (Use Group C): 30 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Lever
- Connectable Conductor Materials: Copper
- Nominal Cross-section: 6 mm²
- Solid Conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Stranded Conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded Conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Strip Length: 12 … 14 mm / 0.47 … 0.55 inch
- Total Number of Connection Points: 3
- Total Number of Potentials: 1
- Wiring Type: Side-entry wiring
- Width: 22.9 mm / 0.902 inch
- Height: 10.1 mm / 0.398 inch
- Depth: 21.1 mm / 0.831 inch
- Color: transparent
- Flammability Class per UL94: V2
- Color of Actuator: orange
- Weight: 4 g
- Surrounding Air Temperature (Operation): 85 … 85 °C
- Continuous Operating Temperature: 105 … 105 °C
- Temperature Marking per EN 60998: T85
- Packaging Type: BOX
- Country of Origin: CH
- GTIN: 4055143715416
- Customs Tariff Number: 85369010000
Buy the 221-613 WAGO Splicing Connector | myMectronic
Purchase the WAGO 221-613 Splicing Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 221613?
You can click on the BUY or RFQ button to purchase 221613 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 221613?
You can download the 221613 datasheet or visit the WAGO website for support.
Who is the manufacturer of 221613?
WAGO
