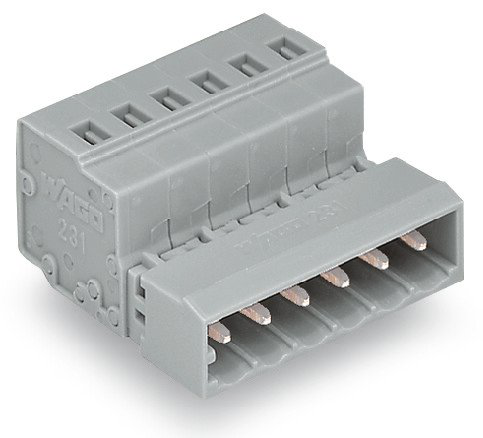

WAGO 231624 24 Pole Connector Block
The WAGO 231-624 is a 24-pole connector block designed for use in a variety of industrial applications, including power distribution, control systems, and automation. It features a robust cage clamp connection, ensuring reliable and vibration-resistant terminations. The compact design and clearly marked poles simplify wiring and maintenance. This connector block is suitable for use in environments requiring reliable power and signal transmission, contributing to the overall efficiency and safety of industrial systems.
WAGO 231624 24 Pole Connector Block Specifications:
- Product Description: MALE CONNECTOR; 24 POLE; PIN SPACING 5 MM / 0.197 IN; CAGE CLAMP®CONNECTION
- Packing Unit: 10 pieces
- Product Group: 3 (Multi Conn. System)
- Pin Spacing: 5 mm / 0.197 in
- Pole Count: 24
- Cross Section Min: 0.08 mm²
- Cross Section Max: 2.5 mm²
- Cross Section Min AWG: 28 AWG
- Cross Section Max AWG: 12 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage EN: 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 3
- Current Intensity EN: 12 A
- Weight: 36,7 g
- Color: grey
- No. of Connection Points: 24
- No. of Potentials: 24
- Height: 14.3 mm / 0.563 in
- Width: 123.2 mm / 4.85 in
- Depth: 27.5 mm / 1.083 in
- Strip Length Min: 8 mm / 0.33 in
- Strip Length Max: 9 mm / 0.33 in
- Admission Office ABS Voltage: 400 V
- Admission Office ABS Current: 12 A
- Admission Office ABS Cross Section: 5.0 mm²
- Admission Office BV Voltage: 400 V
- Admission Office BV Current: 16 A
- Admission Office BV Cross Section: 2.5 mm²
- Admission Office CCA Voltage: 250 V
- Admission Office CCA Current: 12 A
- Admission Office CCA Cross Section: 0.08-2.5 mm²
- Admission Office CSA Voltage: 300 V
- Admission Office CSA Current: 15 A
- Admission Office CSA Cross Section: 22-12 AWG
- Admission Office DEMKO Voltage: 250 V
- Admission Office DEMKO Current: N/A
- Admission Office DEMKO Cross Section: 2.5 mm²
- Admission Office GL Voltage: 400 V
- Admission Office GL Current: 12 A
- Admission Office GL Cross Section: 5.0 mm²
- Admission Office KEMA Voltage: 250 V
- Admission Office KEMA Current: 12 A
- Admission Office KEMA Cross Section: 0.08-2.5 mm²
- Admission Office KR Voltage: 250/400 V
- Admission Office KR Current: 12/16 A
- Admission Office KR Cross Section: 2.5 mm²
- Admission Office LR Voltage: 400 V
- Admission Office LR Current: 12 A
- Admission Office LR Cross Section: 5.0 mm²
- Admission Office NEMKO Voltage: 250 V
- Admission Office NEMKO Current: N/A
- Admission Office NEMKO Cross Section: 2.5 mm²
- Admission Office RMR Voltage: 400 V
- Admission Office RMR Current: 12 A
- Admission Office RMR Cross Section: 5.0 mm²
- Admission Office UR Voltage: 600 V
- Admission Office UR Current: 15 A
- Admission Office UR Cross Section: 12 AWG
- Admission Office UR2 Voltage: 300 V
- Admission Office UR2 Current: 15 A
- Admission Office UR2 Cross Section: 22-12 AWG
