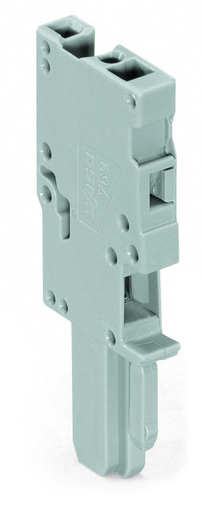

WAGO 769101 1-Conductor Female Plug
The WAGO 769-101 is a pluggable connector designed for secure and efficient electrical connections in industrial environments. It utilizes WAGO’s CAGE CLAMP® connection technology, allowing for easy and reliable termination of conductors. This connector is suitable for applications requiring a 4 mm² cross-section and a 1-pole configuration, and is designed to be mated and unmated without interrupting current. It is important to adhere to EN 61984 guidelines when handling pluggable connectors to ensure safety and proper operation. The 769-101 is a versatile solution for connecting wires in control cabinets, machinery, and other industrial equipment.
WAGO 769101 1-Conductor Female Plug Specifications:
- Nominal Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 32 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Nominal Cross-Section: 4 mm²
- Solid Conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 1
- Total Number of Connection Points: 1
- Total Number of Potentials: 1
- Wiring Type: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height: 45.2 mm / 1.78 inch
- Depth: 18.3 mm / 0.72 inch
- Module Width: 5 mm / 0.197 inch
- Insulation Material: Polyamide (PA66)
- Fire Load: 0.054 MJ
- Weight: 3.4 g
- Color: gray
- Marking Level: Side marking
- Contact Type: Female connector/socket
- Connector Type: for conductor
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918471268
- Customs Tariff Number: 85366990990
- Product Group: 18 (X-COM-System)
Buy the 769-101 WAGO 1-Conductor Female Plug | myMectronic
Purchase the WAGO 769-101 1-Conductor Female Plug securely online for all your industrial connection needs.
