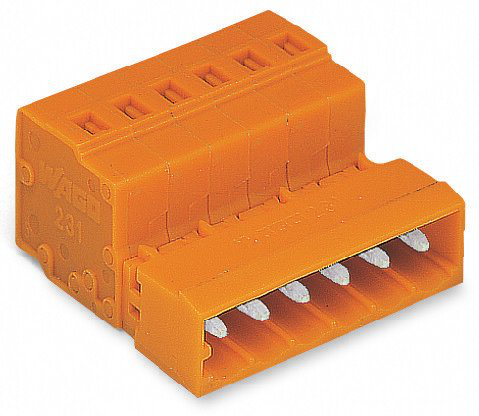

WAGO 231637 7-pole Male Connector
The WAGO 231-637 is a 7-pole male connector within WAGO's MULTI CONNECTION SYSTEM. It's engineered for versatile conductor connections, accommodating solid, fine-stranded, and ferruled conductors. The innovative CAGE CLAMP actuation simplifies cable handling, enabling both vertical and horizontal wiring. This connector is ideal for applications requiring secure and efficient connections in industrial control panels, machinery, and automation systems. Its robust design and compliance with international standards ensure reliable performance in demanding environments.
WAGO 231637 7-pole Male Connector Specifications:
- Nominal voltage (III/3): 320 V
- Rated surge voltage (III/3): 4 kV
- Rated voltage (III/2): 320 V
- Rated surge voltage (III/2): 4 kV
- Nominal voltage (II/2): 630 V
- Rated surge voltage (II/2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage UL (1977): 600 V
- Rated current UL (1977): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
- Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 7
- Total number of connection points: 7
- Total number of potentials: 7
- Number of connection types: 1
- Number of levels: 1
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 38.76 mm / 1.526 inch
- Height: 14.3 mm / 0.563 inch
- Depth: 27.5 mm / 1.083 inch
- Contact type (pluggable connector): Male connector/plug
- Connector (connection type): for conductor
- Mismating protection: No
- Color: orange
- Material group: I
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.183 MJ
- Weight: 11 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918260237
