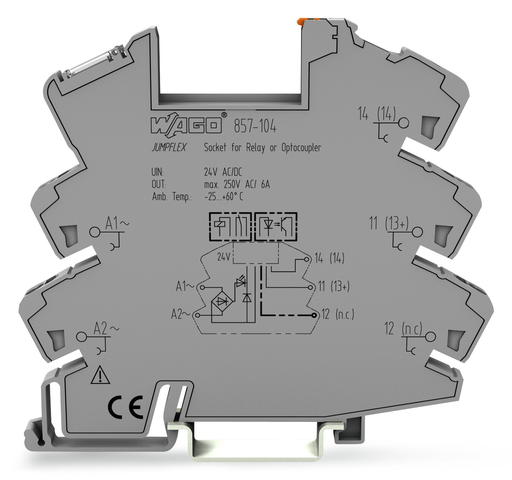

WAGO 857104 Relay Socket
The WAGO 857-104 relay socket provides a convenient and reliable interface for 5mm relays in various industrial applications. Designed for a nominal input voltage of 24V AC/DC, this socket features a yellow status indicator for easy monitoring of relay operation. It is compatible with a range of relay types and offers reinforced insulation for enhanced safety. The socket's robust construction and DIN-rail mounting capability make it suitable for demanding environments. It is ideal for applications requiring reliable switching and control in automation systems, machinery, and other industrial equipment.
WAGO 857104 Relay Socket Specifications:
- Nominal Input Voltage: 24 V AC/DC
- Limiting Continuous Current: 6 A
- Switching Voltage (max.): 250 V AC
- Status Indicator: Yellow LED
- Rated Voltage: 300 V
- Rated Surge Voltage: 4 kV
- Circuit Type: Mains circuits
- Overvoltage Category: III
- Pollution Degree: 2
- Dielectric Strength Control/Load Circuit: 3.51 kVrms
- Dielectric Strength Open Contact: 1 kVrms
- Insulation Type Control/Load Circuit: Reinforced insulation
- Insulation Type Adjacent Devices: Reinforced insulation
- Protection Type: IP20
- Solid Conductor Size: 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-Stranded Conductor Size: 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip Length: 9 … 10 mm / 0.35 … 0.39 inch
- Width: 6 mm / 0.236 inch
- Height from Upper-Edge of DIN-Rail: 81 mm / 3.189 inch
- Depth: 94 mm / 3.701 inch
- Mounting Type: DIN-35 rail
- Material Data Weight: 26.3 g
- Surrounding Air Temperature (Operation): -40 … 70 °C
- Surrounding Air Temperature (Storage): -40 … 70 °C
- Relative Humidity: 5 … 95 % (no condensation permissible)
- Operating Altitude (Max): 2000 m
- Standards and Specifications: EN 61010-2-201; UR
- Product Group: 6 (Interface Electronics)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4055143093729
- Customs Tariff Number: 85366990990
Buy the 857-104 WAGO Relay Socket | myMectronic
Purchase the WAGO 857-104 relay socket securely online and ensure reliable performance in your applications.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 857104?
You can click on the BUY or RFQ button to purchase 857104 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 857104?
You can download the 857104 datasheet or visit the WAGO website for support.
Who is the manufacturer of 857104?
WAGO
