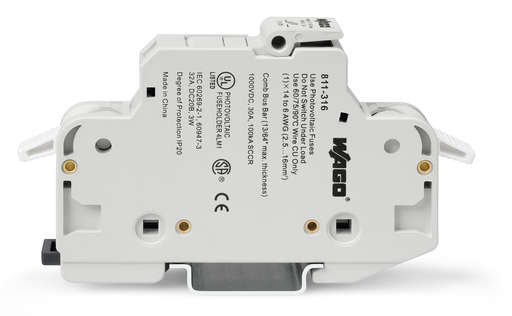

WAGO 811316 2-conductor fuse terminal block
The WAGO 811-316 is a robust 2-conductor fuse terminal block specifically engineered for use with cylindrical fuses (10 x 38 mm). Designed for photovoltaic applications, this terminal block provides a secure and organized solution for fuse protection within electrical systems. It features WAGO's innovative CAGE CLAMP® connection technology, ensuring reliable and vibration-resistant connections. The block is designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, simplifying installation and integration into existing electrical panels. Its light gray color and durable polyamide 66 (PA 66) construction contribute to its overall reliability and longevity.
WAGO 811316 2-conductor fuse terminal block Specifications:
- Voltage type: DC
- Ratings per IEC/EN 60664-1: 1000 V
- Rated current: 32 A
- Connection technology: CAGE CLAMP®
- Solid conductor: 2.5 … 16 mm² / 14 … 6 AWG
- Fine-stranded conductor: 2.5 … 16 mm² / 16 … 6 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- No. of poles: 1
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Width: 17.5 mm / 0.689 inch
- Height from upper-edge of DIN-35 rail: 55 mm / 2.165 inch
- Depth: 105 mm / 4.134 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Insulating material: Polyamide 66 (PA 66)
- Weight: 63.1 g
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821849001
- Customs Tariff No.: 85369095990
- Temperature range handling: -35°C ... +85°C
Buy the 811-316 WAGO 2-conductor fuse terminal block | myMectronic
Purchase the genuine WAGO 811-316 fuse terminal block securely online for your industrial automation needs.
