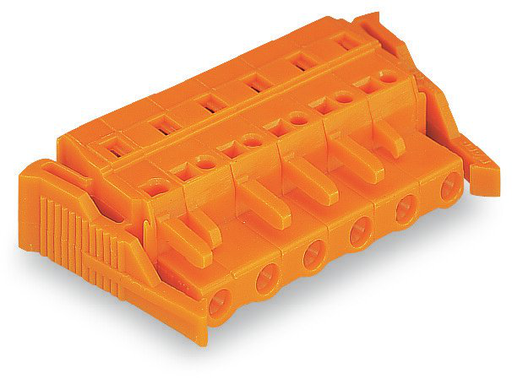

WAGO 231711037000 1-conductor female plug connector
The WAGO 231-711/037-000 is a versatile 11-pole female plug connector within the MCS – MULTI CONNECTION SYSTEM. It's designed for universal conductor types and offers easy cable pre-assembly and on-unit wiring through vertical and horizontal CAGE CLAMP actuation. The connector includes integrated test ports for convenient testing and coding fingers for proper alignment. It is suitable for a wide range of industrial applications requiring reliable and efficient connections. Safety features ensure safe operation, and it is compliant with various industry standards.
WAGO 231711037000 1-conductor female plug connector Specifications:
- Color: orange
- Conductor size: 2.5 mm²
- Pin spacing: 7.62 mm
- Number of poles: 11
- Nominal voltage (III/3): 500 V
- Rated surge voltage (III/3): 6 kV
- Rated voltage (III/2): 630 V
- Rated surge voltage (III/2): 6 kV
- Nominal voltage (II/2): 1000 V
- Rated surge voltage (II/2): 6 kV
- Rated current: 16 A
- UL voltage (Use Group B): 300 V
- UL current (Use Group B): 15 A
- UL voltage (Use Group D): 300 V
- UL current (Use Group D): 10 A
- CSA voltage (Use Group B): 300 V
- CSA current (Use Group B): 15 A
- CSA voltage (Use Group D): 300 V
- CSA current (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Solid conductor size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule size: 0.25 … 1.5 mm²
- Fine-stranded conductor with uninsulated ferrule size: 0.25 … 2.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Material: Polyamide 66 (PA 66)
- Flammability class: V0
- Weight: 24.6 g
