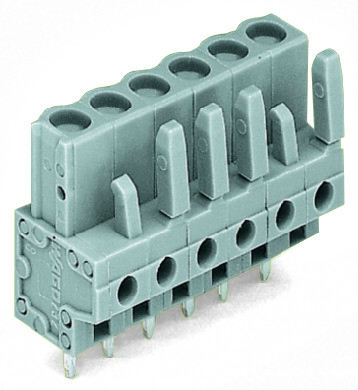

WAGO 232140 10 Pole Female Header
The WAGO 232-140 is a 10-pole female header designed for reliable connections in various industrial applications. Its straight design and 5mm pin spacing facilitate easy PCB mounting, while the 0.6 x 1.0 mm solder pins ensure secure connections. The header's touch-proof PCB outputs enhance safety, and coding fingers simplify identification. It is suitable for board-to-board and board-to-wire connections, making it ideal for a wide range of electronic devices and systems. The header is compliant with numerous industry standards and approvals, ensuring its quality and reliability.
WAGO 232140 10 Pole Female Header Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- No. of poles: 10
- Total number of potentials: 10
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5 mm / 0.197 inch
- Width: 51.5 mm / 2.028 inch
- Height: 23.25 mm / 0.915 inch
- Height from the surface: 18.25 mm / 0.719 inch
- Depth: 11.6 mm / 0.457 inch
- Solder pin length: 5 mm
- Solder pin dimensions: 0.6 x 1 mm
- Drilled hole diameter (tolerance): (− … +0.1) 1.3 mm
- Contact type (pluggable connector): Female connector/socket
- Connector connection type: for PCBs
- Mismating protection: No
- Mating direction to the PCB: 90 °
- PCB contact: THT
- Solder pin arrangement: over the entire female connector, in line
- Number of solder pins per potential: 1
- Color: gray
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load: 0.163 MJ
- Weight: 9.2 g
- Limit temperature range: -60 … +85 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918578479
- Customs Tariff No.: 85366990990
